2255 – 2016-2024 Camaro Caster/Camber Plates, Adj, Strut Mount

$729.99

See fitment note
❢ Base SKU. Select options to reference SKU
SKU: 2255 Tag:
Alignment Upgrade

2255 – 2016-2024 Camaro Caster/Camber Plates, Adj, Strut Mount

Race-level alignment control from the engine bay. Precision-machined 2024 aluminum plates add up to 1.25 degrees of camber and 1.75 degrees of caster without wheel removal.

Caster & Camber Adjust Engine Bay Adjust 2024 Aluminum Spherical Bearings
True caster and camber adjustments for aggressive track alignments
Track-friendly workflow — adjust from the engine bay with hand tools
Premium 2024 aluminum with hard-anodized finish for high strength
Multi-strut compatibility works with Viking, Koni, and factory struts

Description

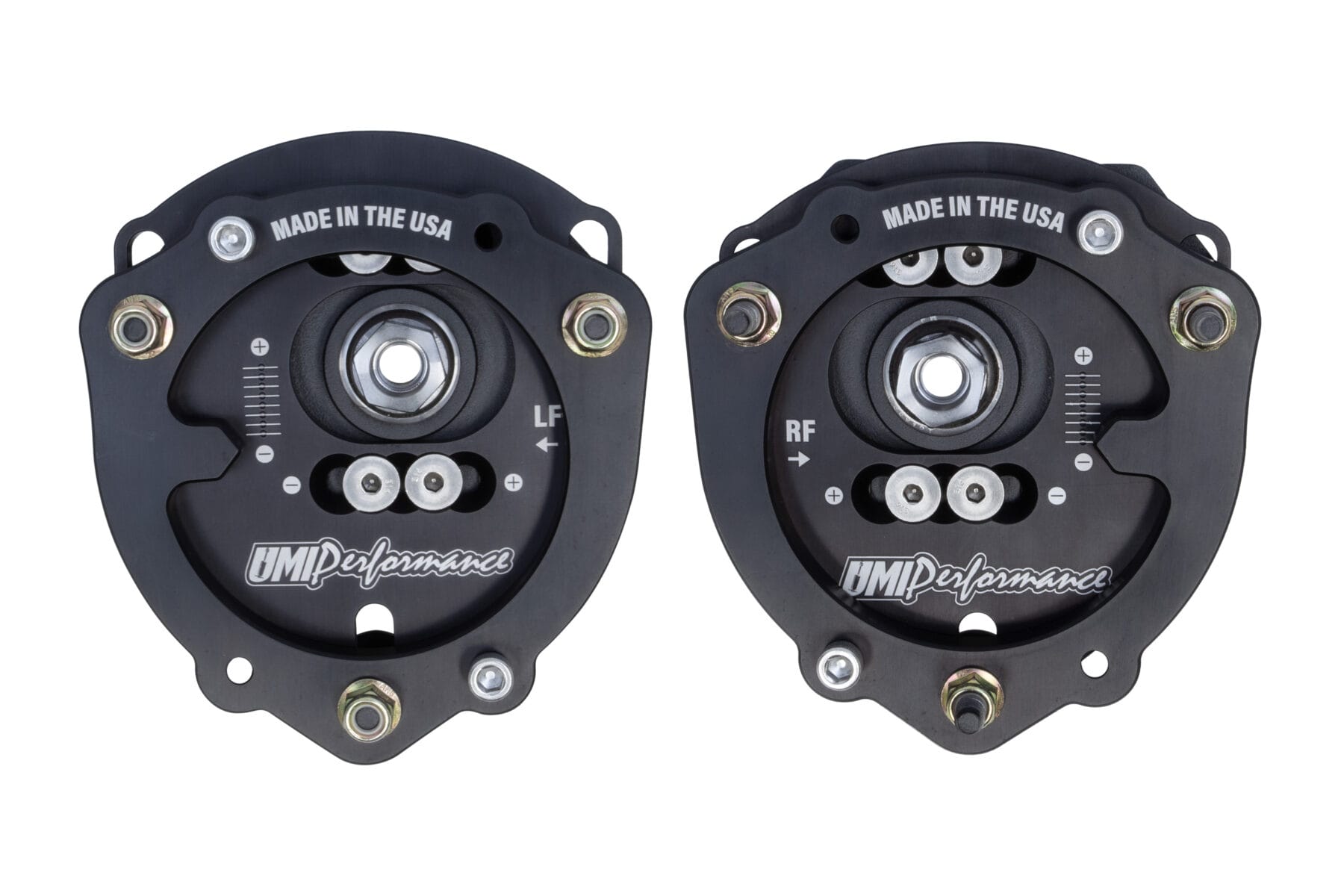

Elevate your 6th Gen Camaro's front suspension with UMI's 2255 Caster/Camber Plates. These premium adjustable plates allow you to dial in your alignment far beyond factory limits, achieving approximately 1.25 degrees of additional camber and 1.75 degrees of caster. Constructed from high-strength 2024 aluminum, this kit offers race-level steering precision and tire wear control. The design enables fast, track-side tuning from the engine bay with simple hand tools, eliminating the need for frustrating wheel removal.

Designed for 2016–2024 Chevrolet Camaro models, the 2255 kit features heavy-duty interference press-fit spherical bearings and 4140 steel components for maximum durability. The plates are compatible with factory struts (including Magneride), Viking coilovers, and Koni shocks. Laser-etched markings ensure repeatable adjustments, while the hard-anodized finish delivers exceptional corrosion resistance. Designed, manufactured, and rigorously track-validated at UMI Motorsports Park, this kit brings 100% Made in USA quality to your Camaro.

Product Features

Engine bay adjustments — no wheels off
2024 aluminum construction
Independent caster and camber adjustment
Laser-etched alignment reference guides
Viking, Koni, and factory strut compatible
Interference press-fit spherical bearings
100% Made in USA
Fitment Note: A MagneRide delete module is required when using Viking, Penske, or other aftermarket shocks when installed on vehicles equipped with factory MagneRide struts. This module bypasses the MagneRide system and eliminates error codes on the dash.

Detailed Features

Engine bay adjustments: Make precise alignment changes trackside with basic hand tools—no need to remove the wheels. *(Note: Front toe alignment will need to be reset any time Caster/Camber is changed.)*
2024 aluminum construction: CNC-machined from aerospace-grade alloy for an exceptional strength-to-weight ratio.
True caster and camber: Offers up to 1.25 degrees of camber and 1.75 degrees of caster adjustment beyond factory specs.
Laser-etched markings: Clear, permanent indicators ensure accurate, repeatable alignment changes between street and track setups.
Multi-strut compatibility: Engineered to fit factory Magneride or non-Magneride struts, plus aftermarket Viking and Koni options.
Heavy-duty spherical bearings: Interference press-fit mounts eliminate strut deflection for crisp, instantaneous steering response.
Premium corrosion resistance: Features hard-anodized aluminum and zinc-plated 4140 steel components for long-lasting durability.
Track-tested validation: Developed and rigorously proven on the road course at UMI Motorsports Park.

Product Outcomes

Achieves aggressive alignment specs for maximum cornering grip and stability.
Eliminates strut mount deflection for crisp, predictable steering response.
Enables quick trackside tuning without wasting time removing wheels.
Improves tire wear by correcting alignment on lowered 6th Gen Camaros.

Installation Summary

Overview & Difficulty: Moderate DIY install requiring standard and metric sockets, wrenches, an impact tool, and a brass hammer. Installation requires unbolting the top strut mounts and lower knuckle bolts (spin nuts only, gently tap out splined bolts). Magneride vehicles require disconnecting electrical plugs. Adjustments are made on the ground or lightly lifted using the top hex bolts. Torque lower knuckle bolts to 140 ft-lbs and top plate locknuts to 25 ft-lbs. A professional alignment is highly recommended, as front toe alignment will need to be reset any time Caster/Camber is changed.

What’s Included:
  • Driver side caster/camber adjuster assembly (2255DR) ×1
  • Passenger side caster/camber adjuster assembly (2255PA) ×1
  • Grade 8 flanged nyloc nuts and essential hardware

Is This Product Right for You?

UMI 2255 caster/camber plates transform 6th Gen Camaro alignment, allowing independent caster and camber adjustments from the engine bay to support aggressive driving styles.

Best For
Track and autocross enthusiasts needing quick, repeatable alignment changes.
Street performance builds correcting alignment after lowering the ride height.
Drivers seeking precise steering feedback by eliminating factory rubber strut mounts.
Not Ideal For
×
Stock daily drivers who do not push their vehicle's cornering limits.
×
Beginners uncomfortable with removing front struts or managing spring compression.

Product FAQ

What vehicles do the UMI 2255 caster/camber plates fit?
The UMI 2255 caster/camber plates are designed for all 2016–2024 6th Gen Camaro models.
Do these plates adjust both caster and camber?
Yes. The 2255 system provides both caster and camber adjustment, offering up to 1.25 degrees of camber and 1.75 degrees of caster beyond factory limits.
Can I adjust alignment without removing the wheels?
Yes. All caster and camber changes are made directly from the engine bay using simple hand tools, making trackside tuning fast and easy. Please note that front toe alignment will need to be reset any time Caster/Camber is changed.
What materials are used to build these plates?
The main plates are CNC-machined from 2024 aluminum for a superior strength-to-weight ratio, paired with heavy-duty 4140 steel components.
Which strut options are compatible with these mounts?
The plates are designed to work with factory struts (including Magneride), as well as aftermarket Viking and Koni shock assemblies.
How do these plates improve steering feel?
The assembly uses interference press-fit spherical bearings instead of factory rubber, which eliminates deflection and sharpens steering response.
Are these plates protected against rust and corrosion?
Yes. All aluminum components are hard anodized, and all steel hardware is zinc plated to ensure a clean appearance and long life.
Have these caster/camber plates been track tested?
Absolutely. The UMI 2255 system is rigorously validated and track tested at UMI Motorsports Park to ensure it withstands heavy competitive use.

THIS PRODUCT FEATURES

Designed & Manufactured in the USA

North American Raw Materials

Precision Laser Cut Components

WeightN/A
DimensionsN/A
FinishAnodized
AdjustableYes
Fitment
MaterialAluminum, Chromoly
Platform
UOMSet
Manufacturer
ModificationsNone
HardwareIncluded
Direct Bolt-OnYes
Shock TypeGM-MagneRide, Koni GTS, Viking
Why Choose

UMI Performance

21 Years In The Industry

Shipping Guidelines

Flat Rate Shipping ($12.95) is only offered on Retail orders over $149 shipped via Ground in the Continental United States.

All International customers are responsible for any applicable duties and/or taxes incurred on your shipment upon delivery.

Return Information

All returns are subject to the authorization of UMI Performance, Inc. Please email [email protected] for a Returned Merchandise Authorization (RMA) number. Our Sales team will either authorize or deny the request for return at its discretion. Any product returned without an issued RMA number will not be credited. All returns must be made within 30 days of delivery, be in new condition, be in original sealed packaging and include the RMA number on the outside of the packaging. No exceptions. All products and their packaging must be in new and unopened condition. Products that have been altered, installed, or modified are not returnable. All shipping costs for returns are the responsibility of the customer. All returns are subject to a 20% restocking fee as well as the original shipping charges that UMI Performance may have incurred while shipping your order.

Due to the majority of Viking products being drop shipped, we can not offer returns on any Viking products. If you purchase a Viking product be sure it fits your application. If you need technical assistance prior to placing order please contact [email protected]

This '2255 - 2016-2024 Camaro Caster/Camber Plates, Adj, Strut Mount' fits the following platforms:

Fitment Note: A MagneRide delete module is required when using Viking, Penske, or other aftermarket shocks when installed on vehicles equipped with factory MagneRide struts. This module bypasses the MagneRide system and eliminates error codes on the dash.

2016-2024 Chevrolet Camaro

  • 2016-2014 Chevrolet Camaro

This 2255 - 2016-2024 Camaro Caster/Camber Plates, Adj, Strut Mount fits the following vehicles:

Chevrolet
