273124 – 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars

UMI Performance
New
273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars - Image 2
273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars - Image 3
273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars - Image 4
273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars - Image 5
273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars - Image 6
273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars - Image 7
273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars - Image 8
273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars - Image 9
Click to enlarge

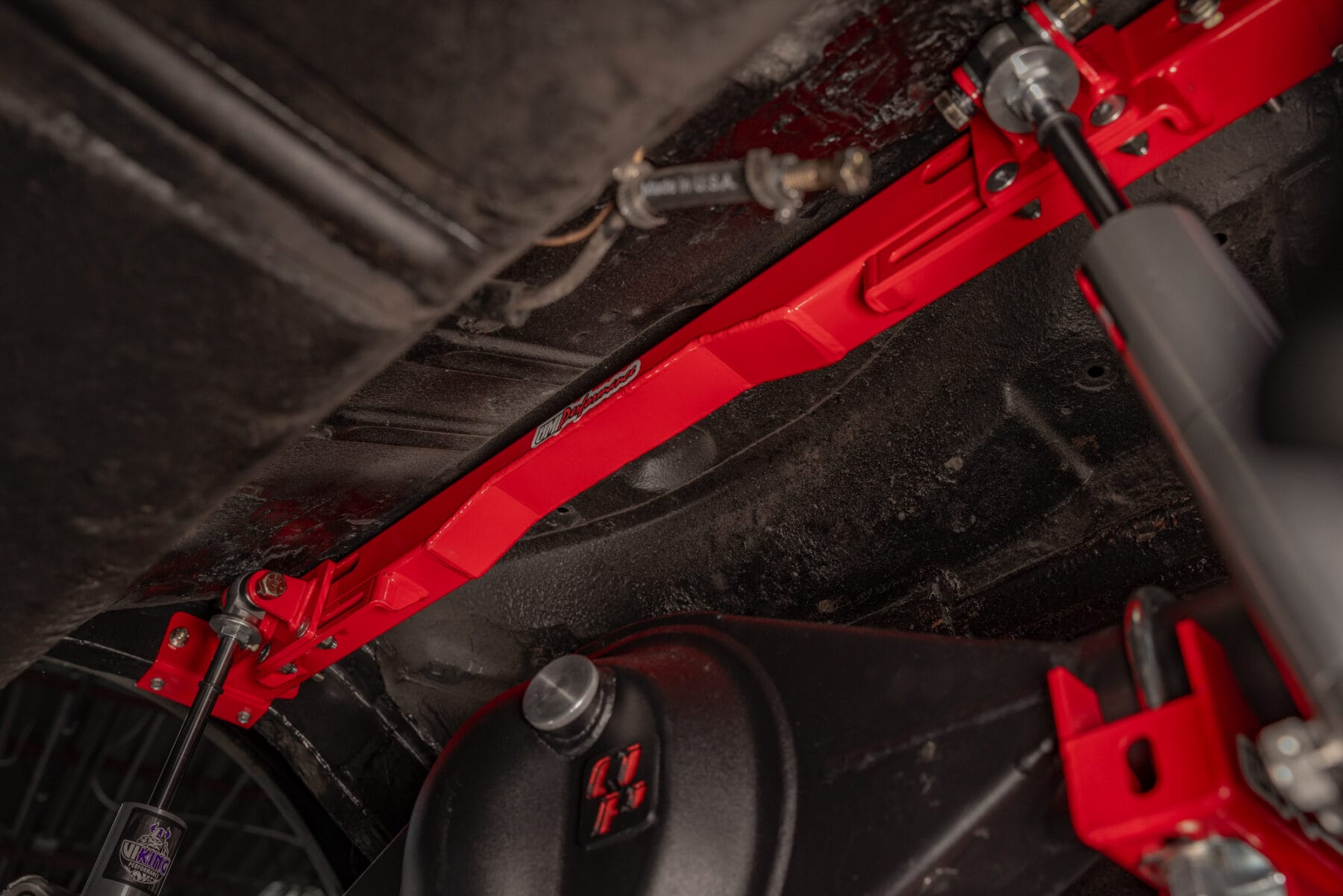

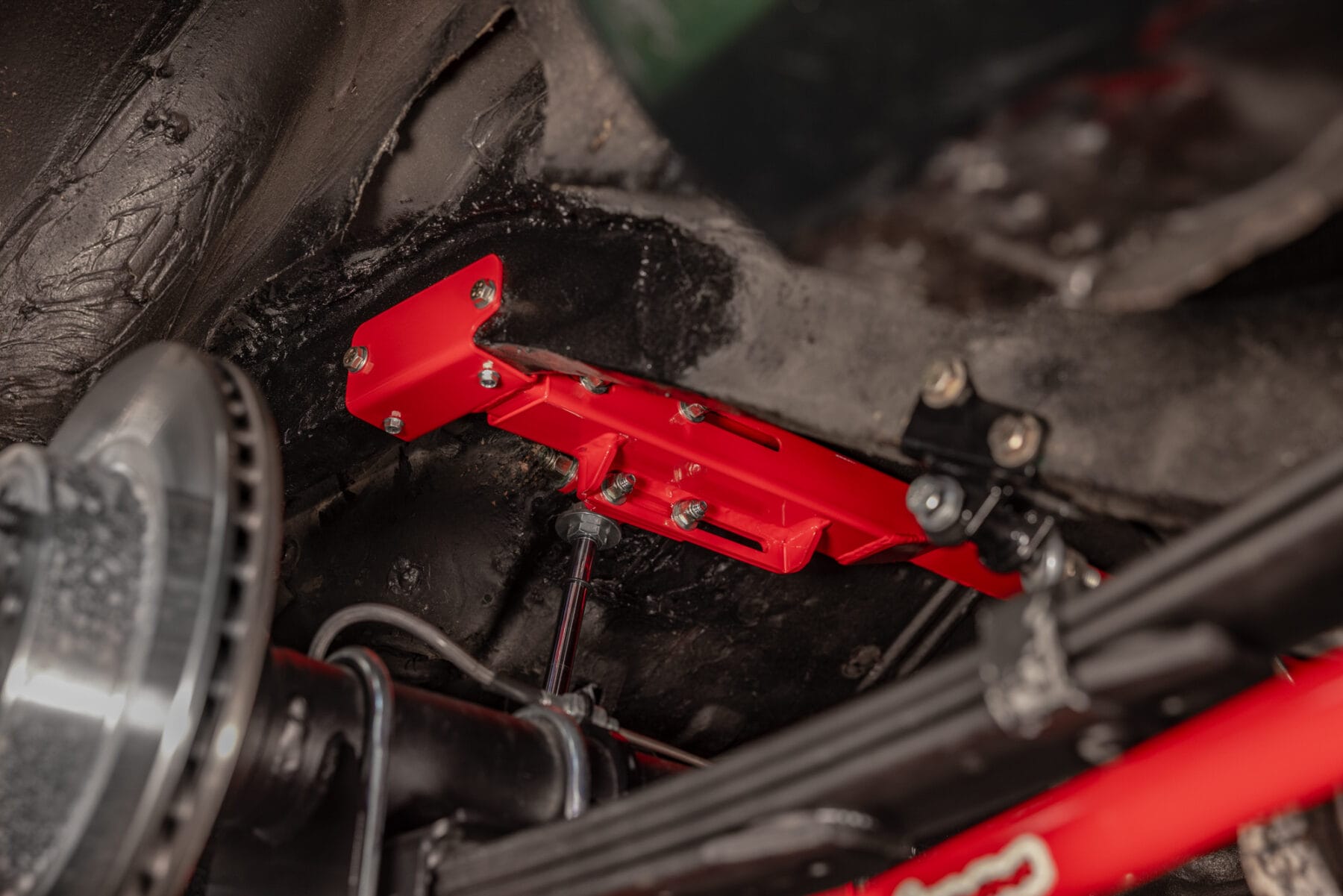

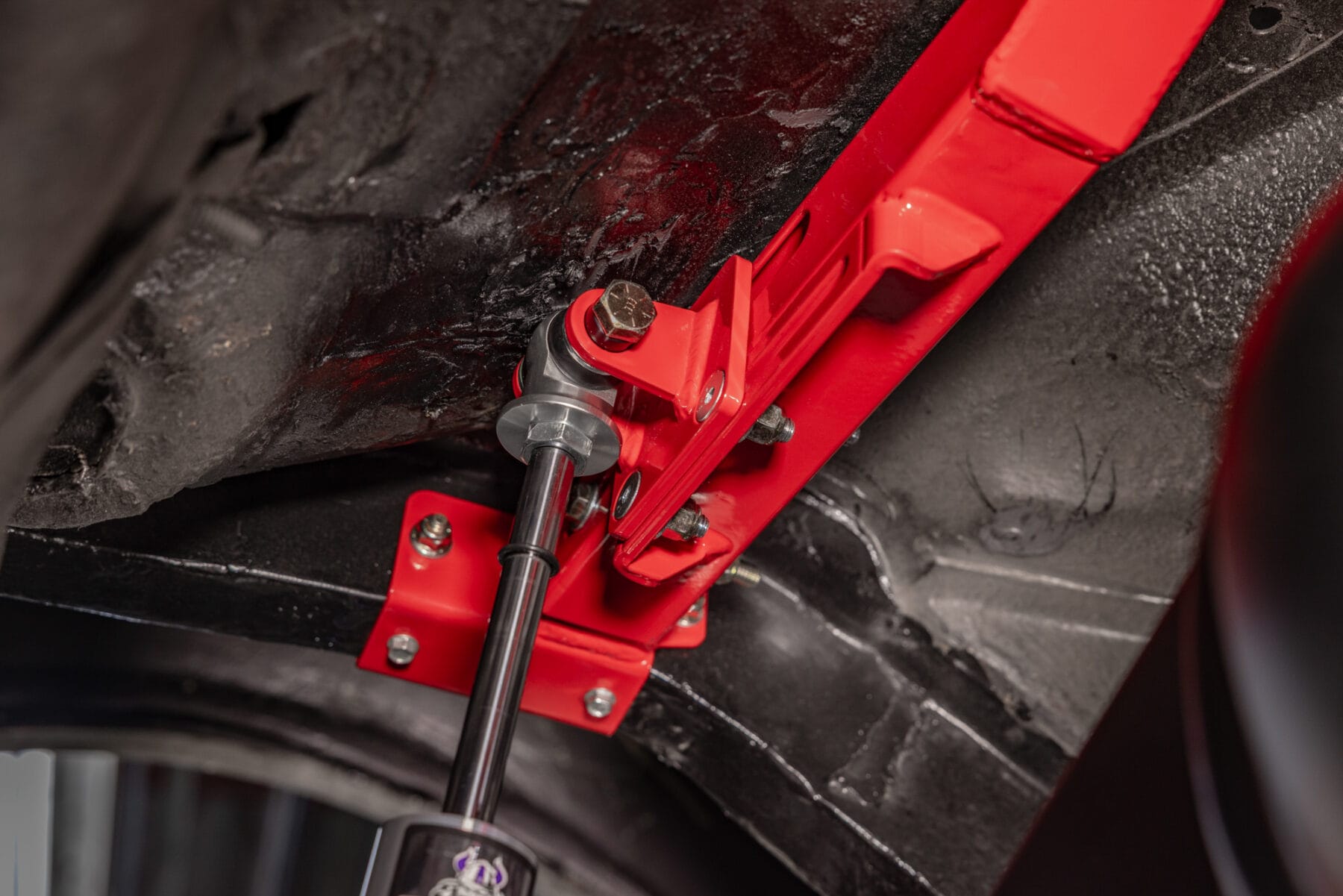

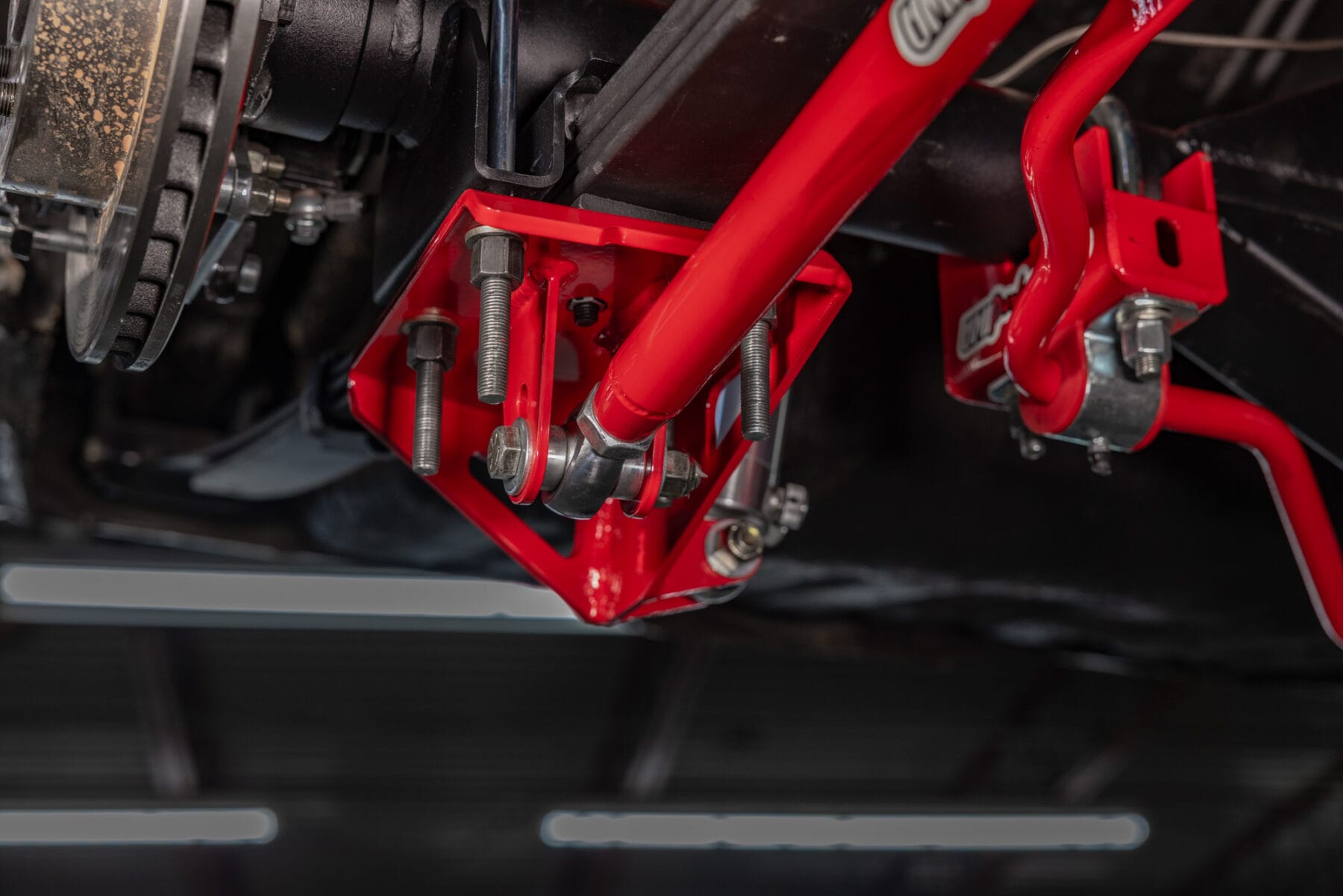

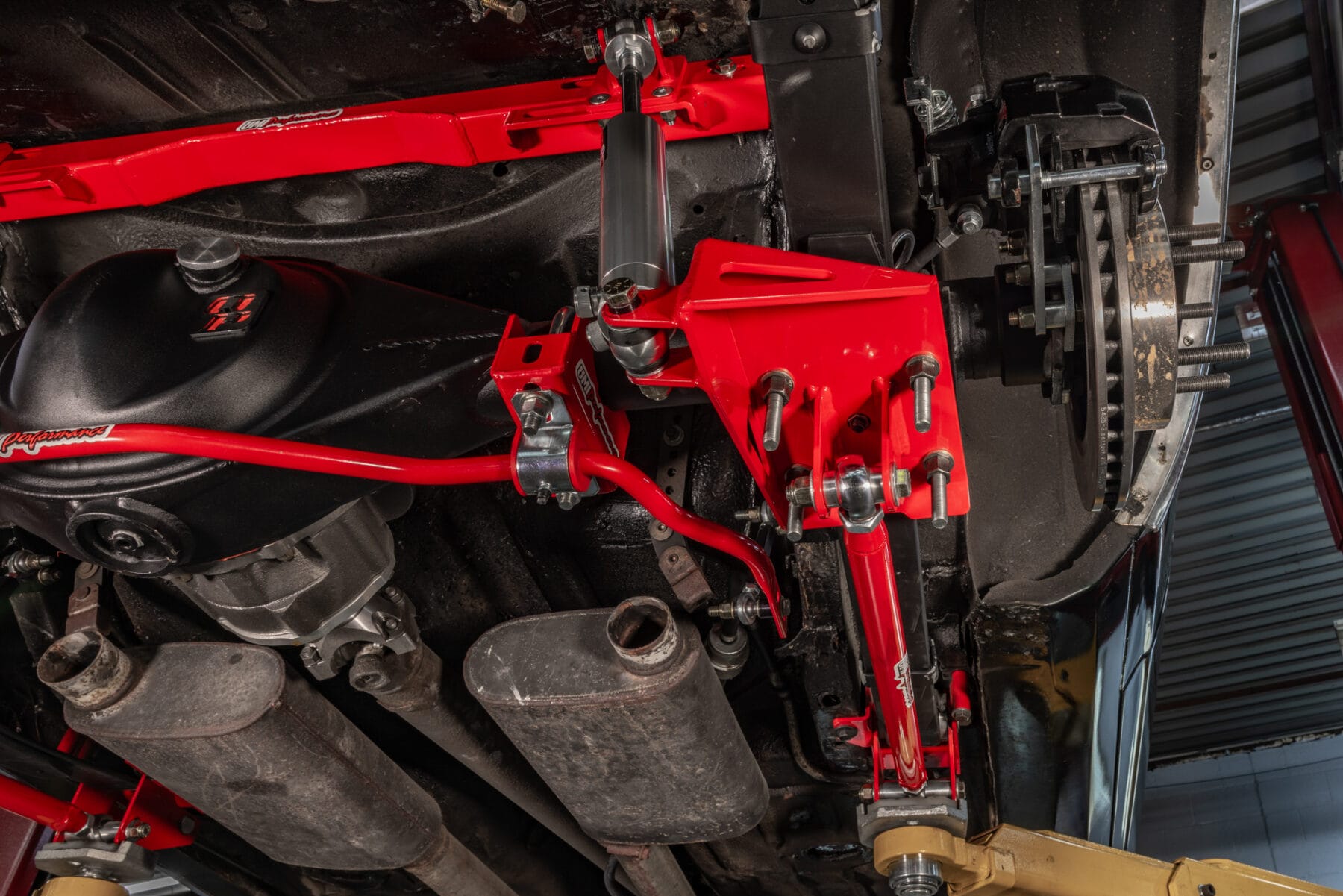

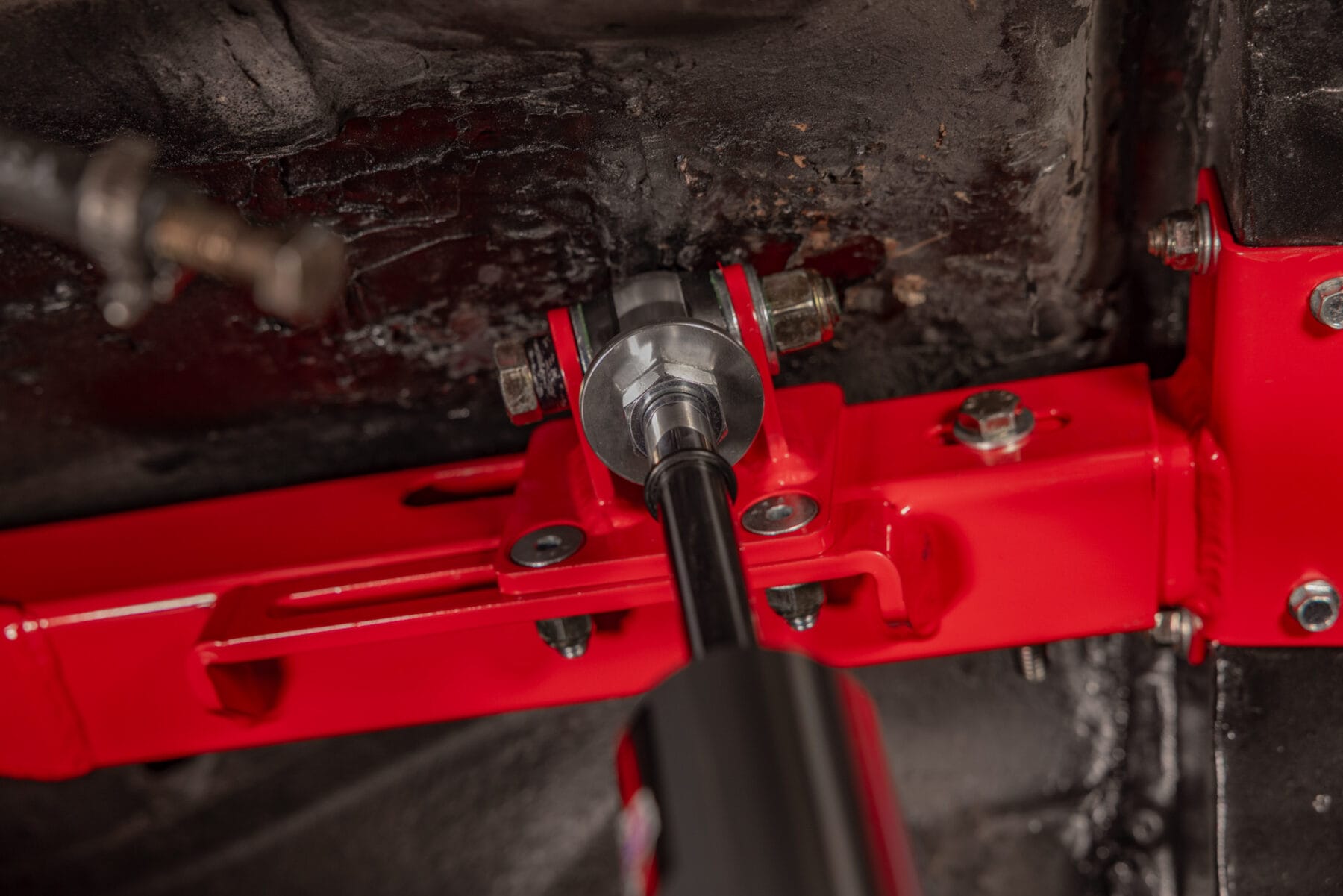

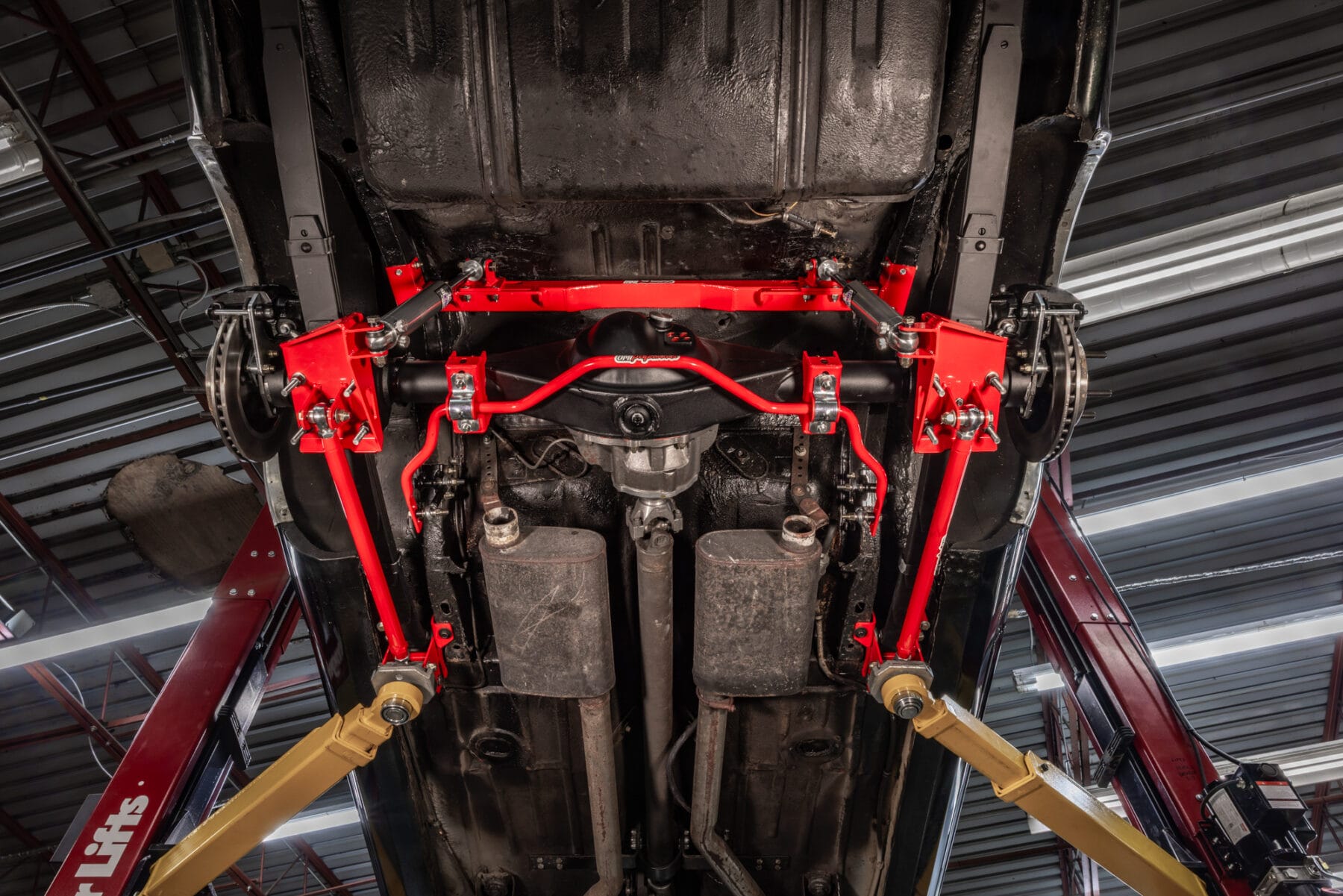

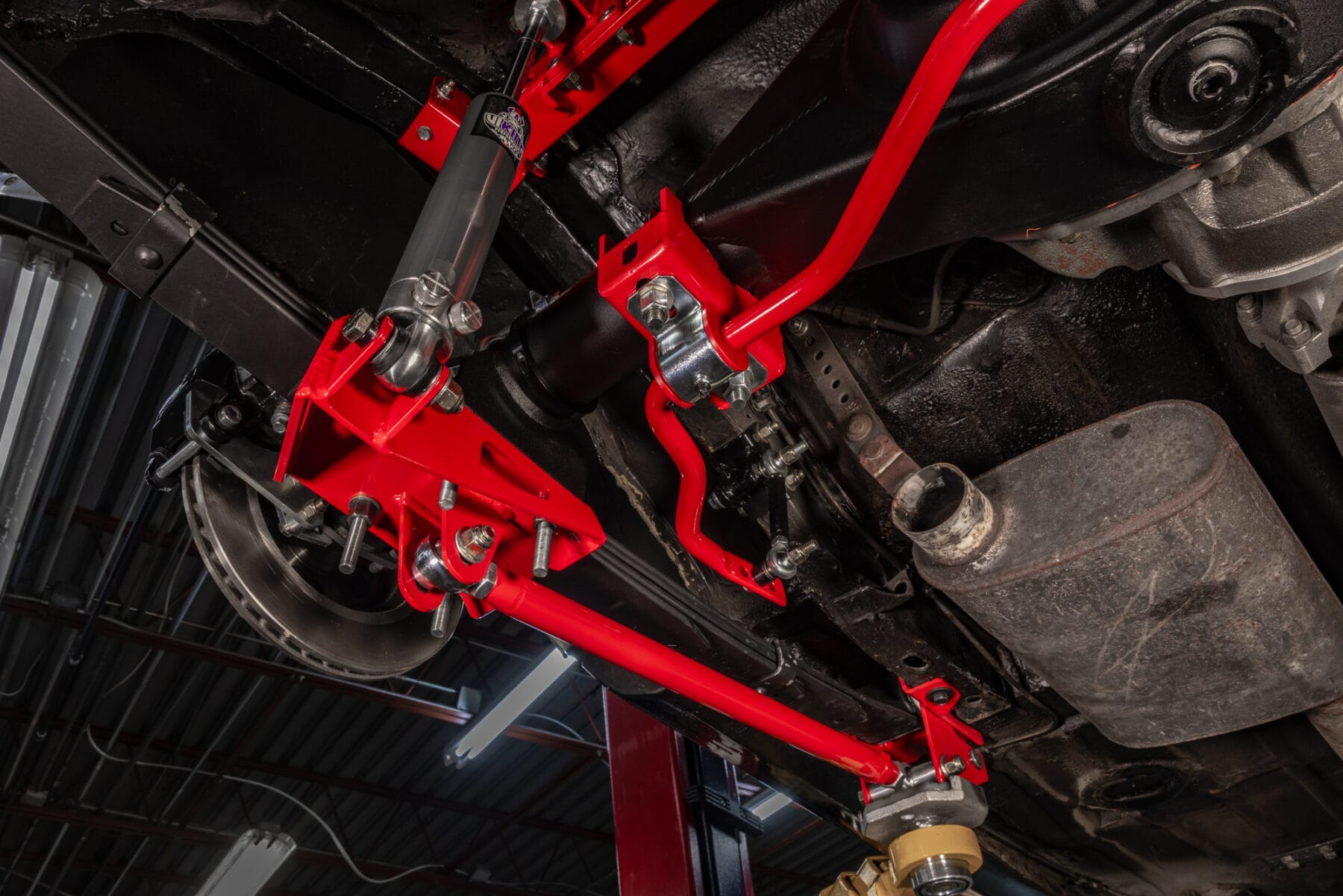

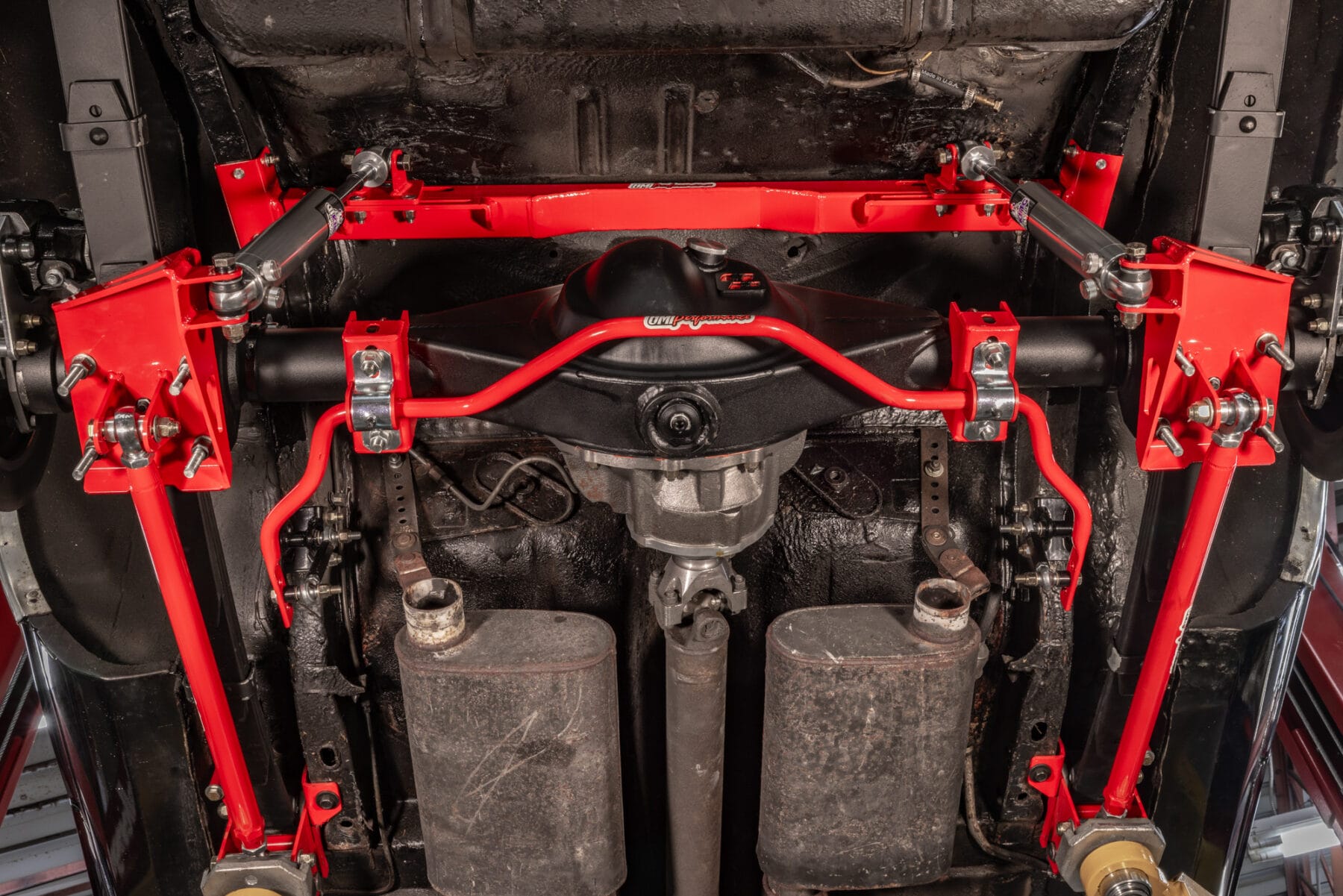

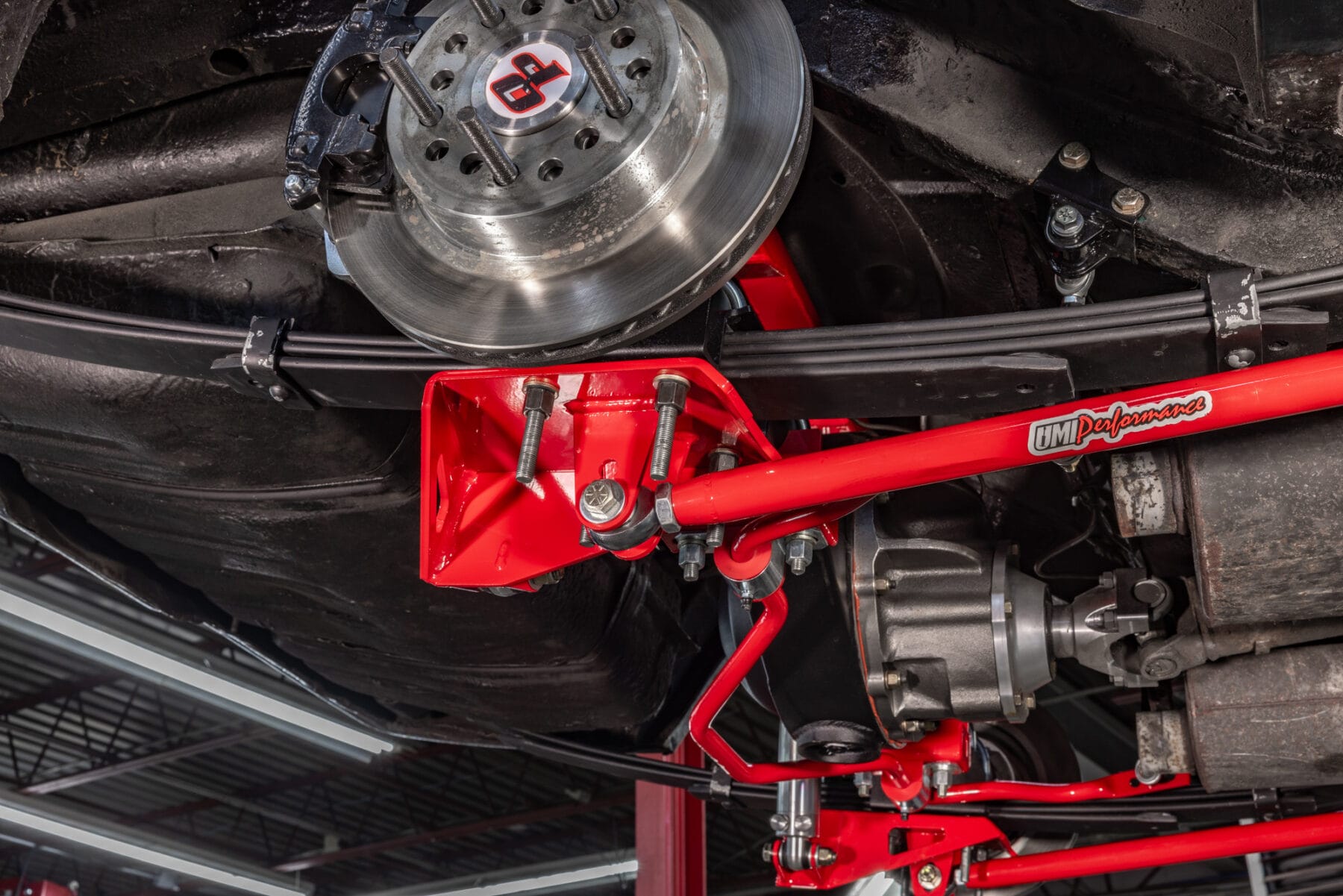

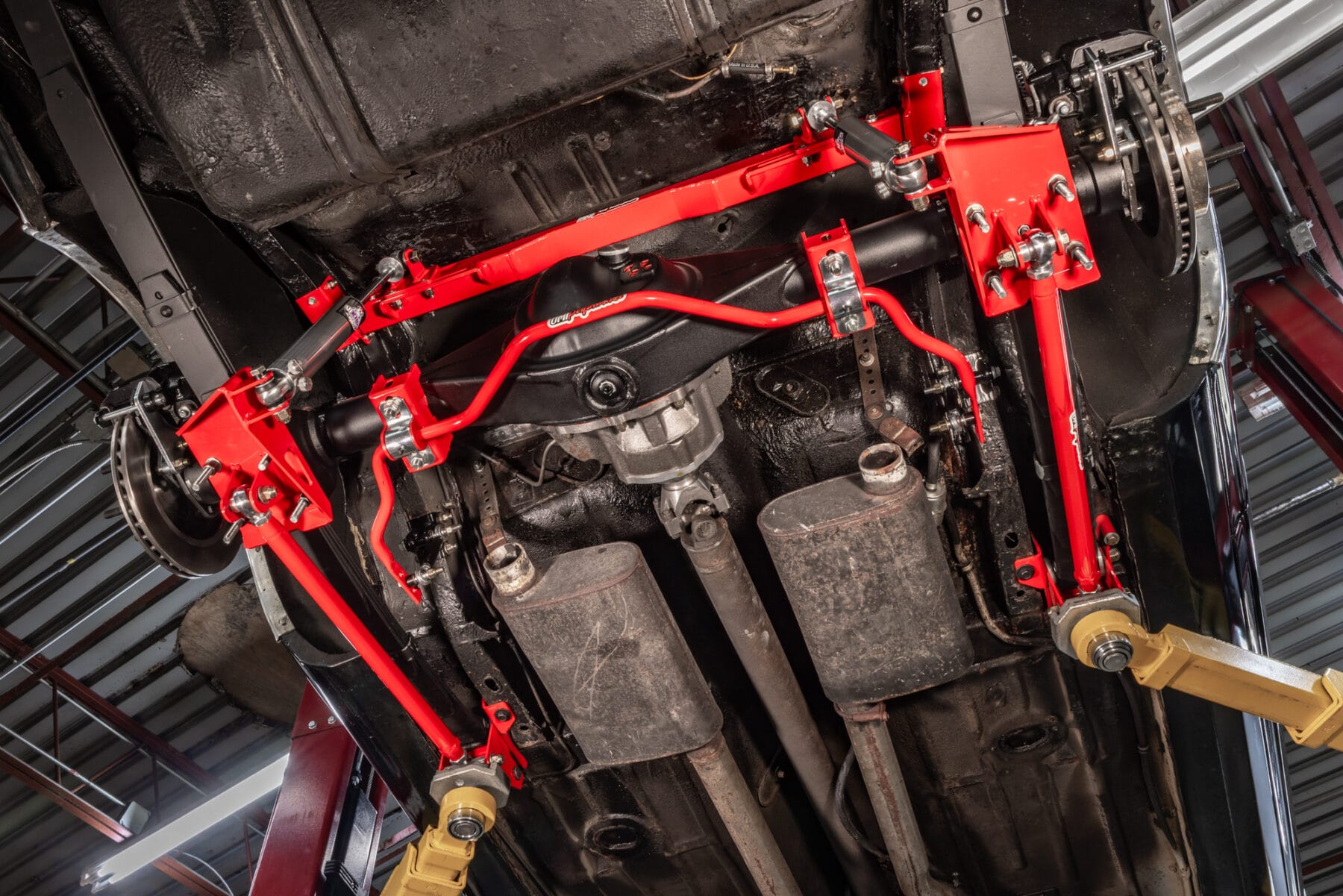

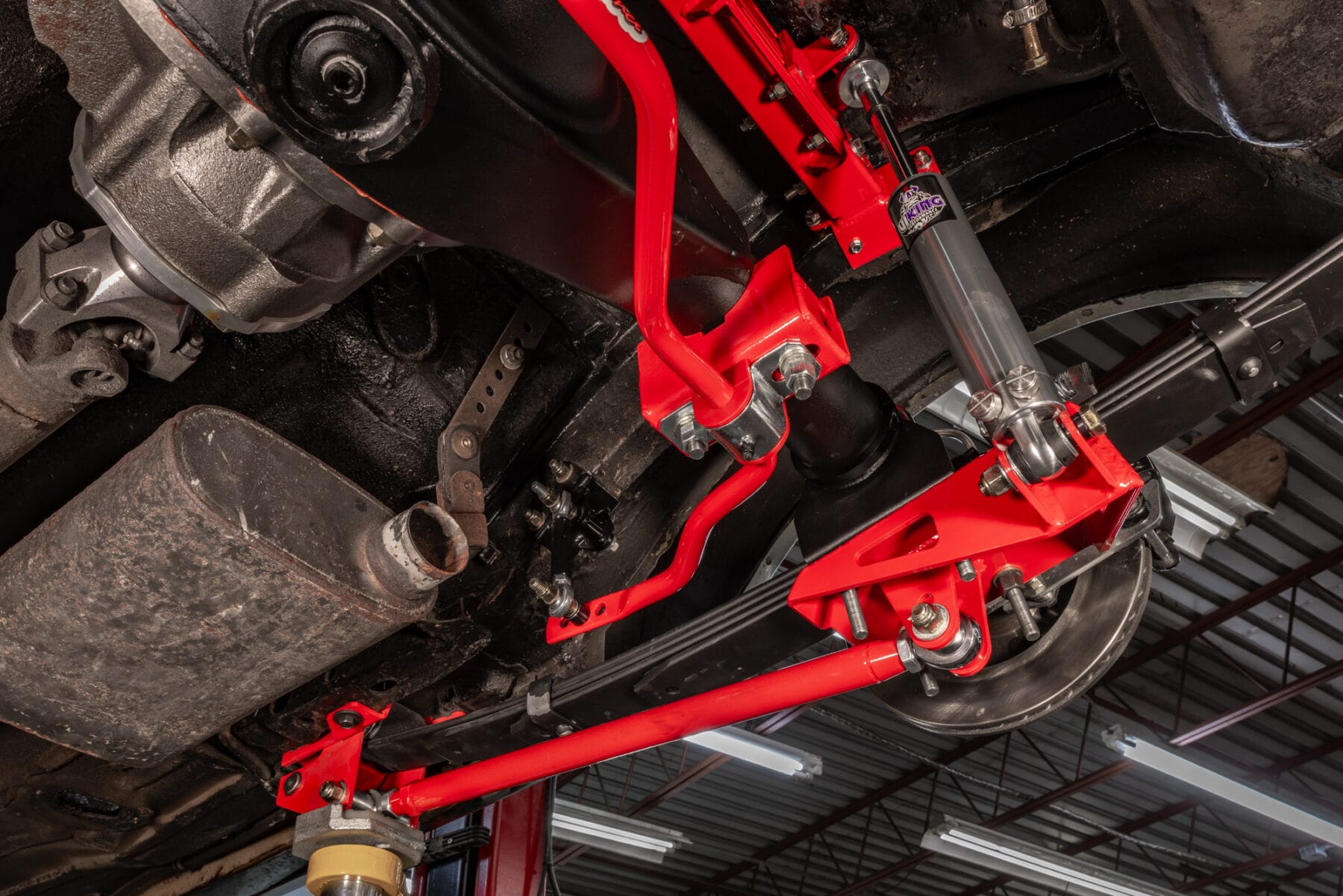

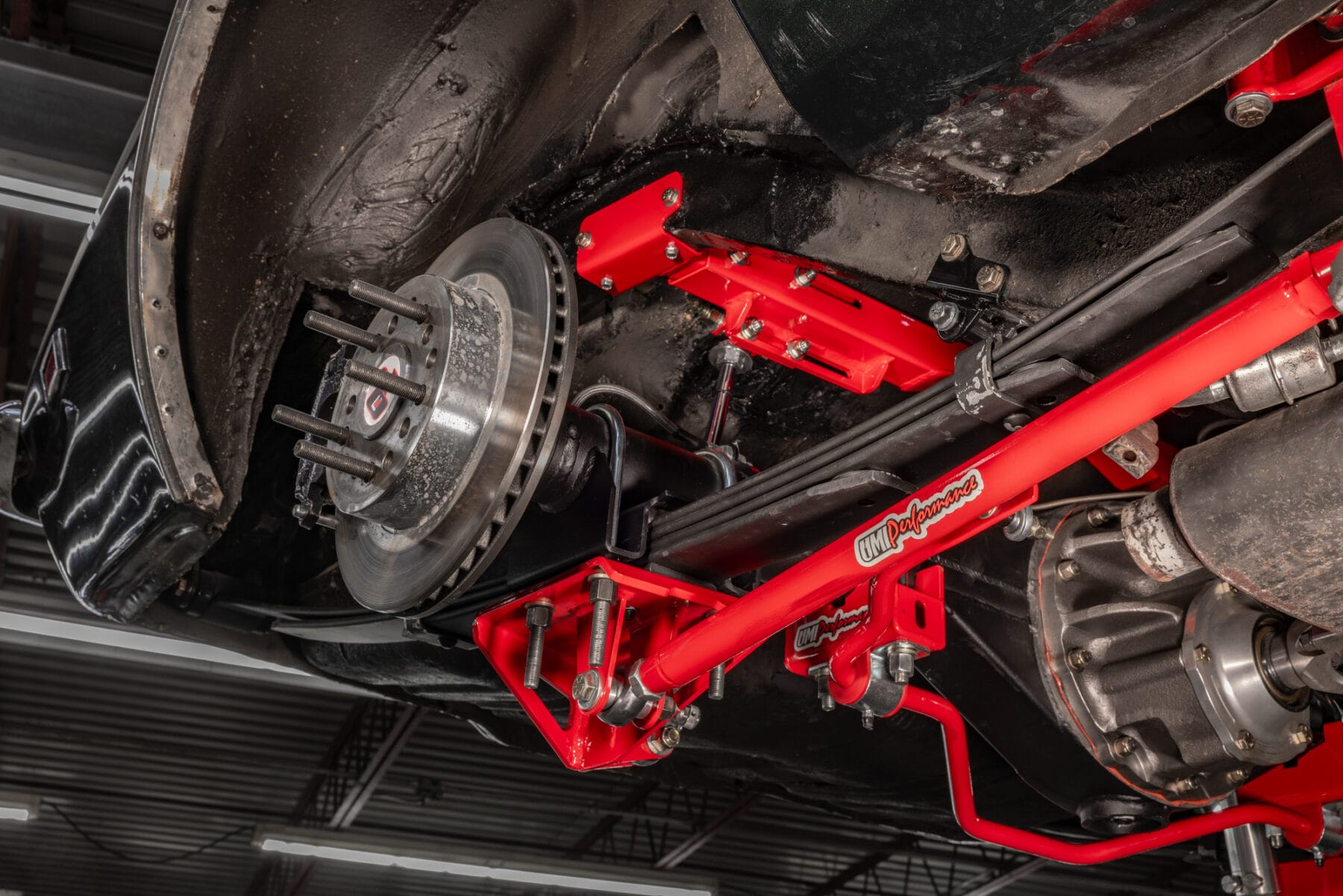

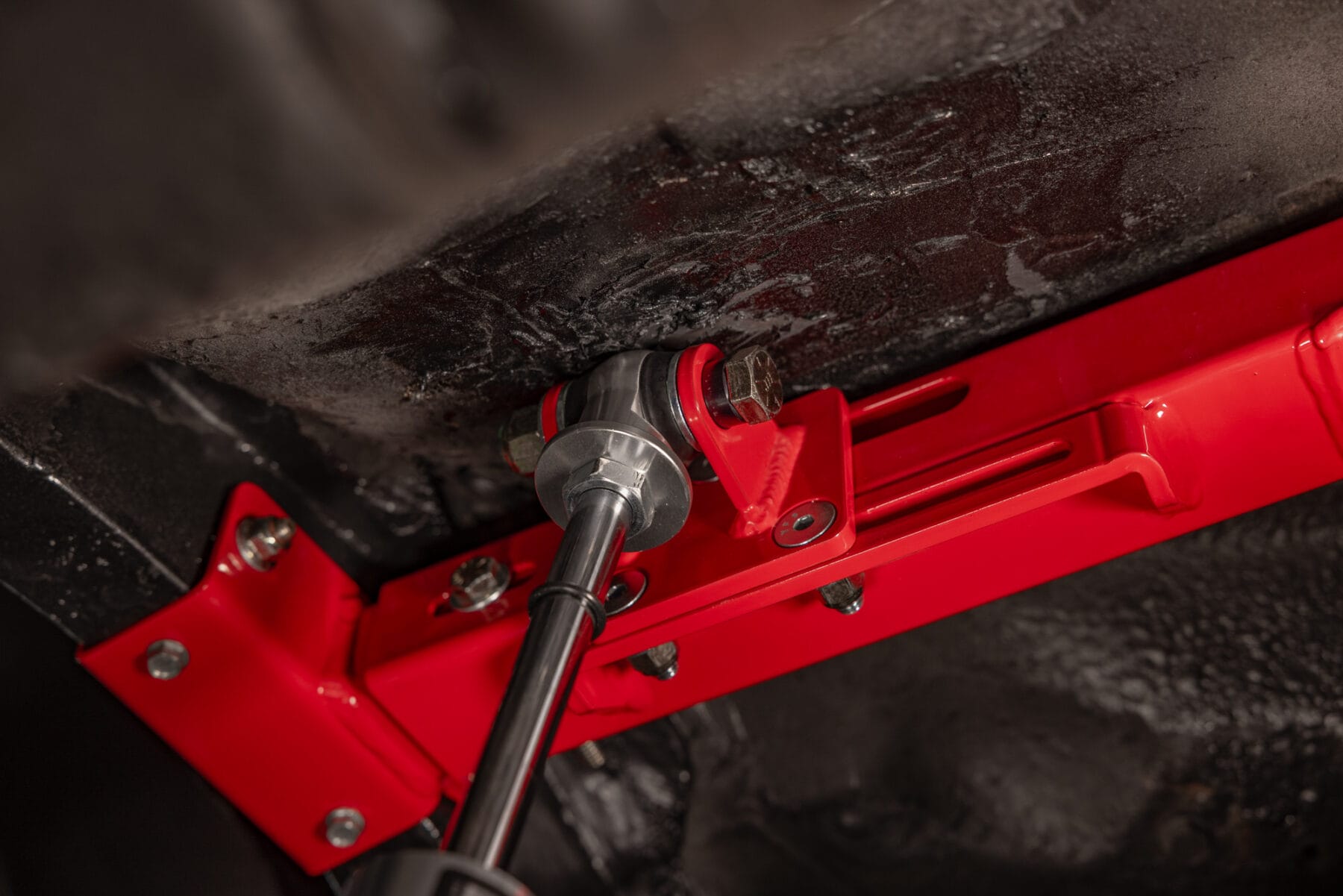

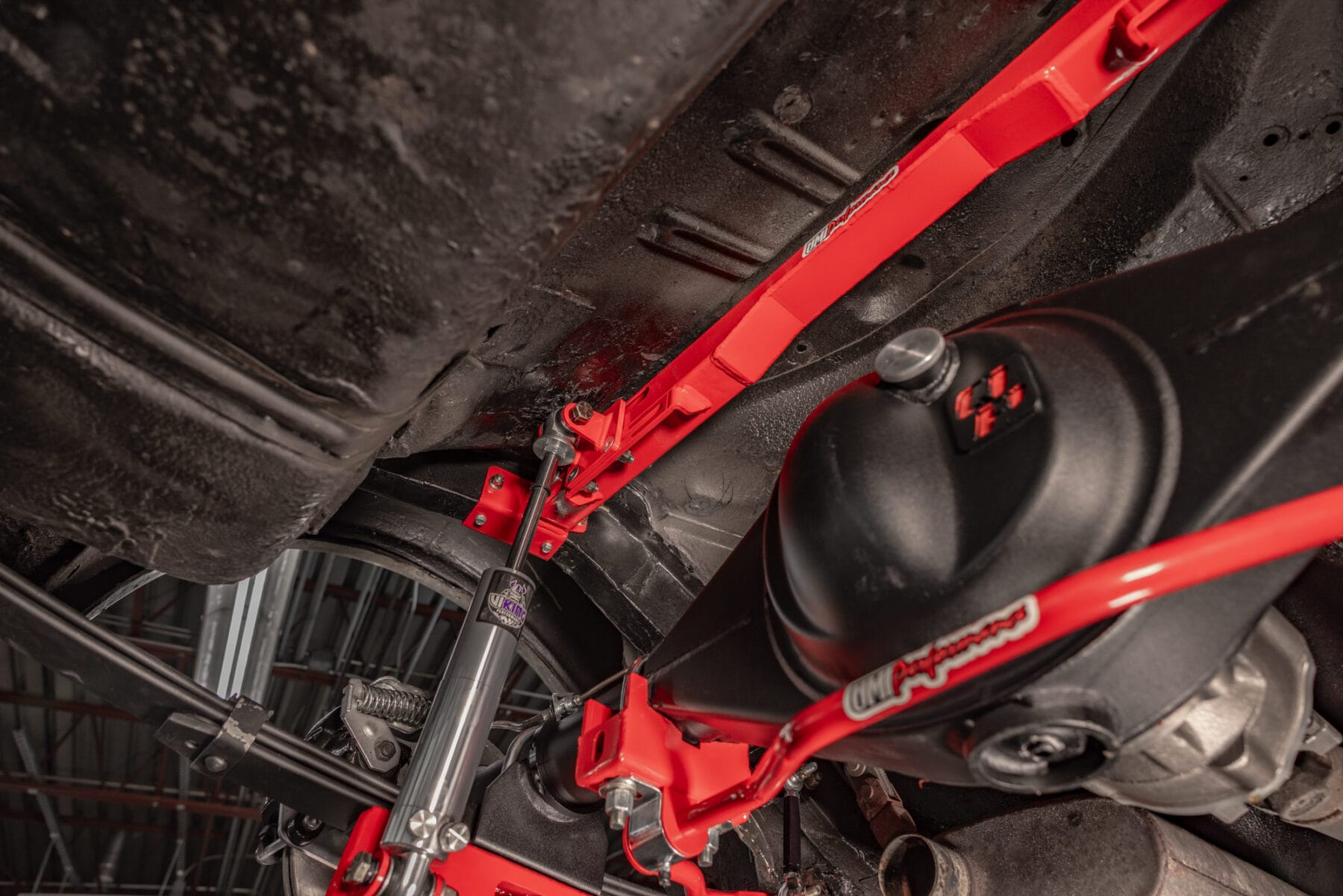

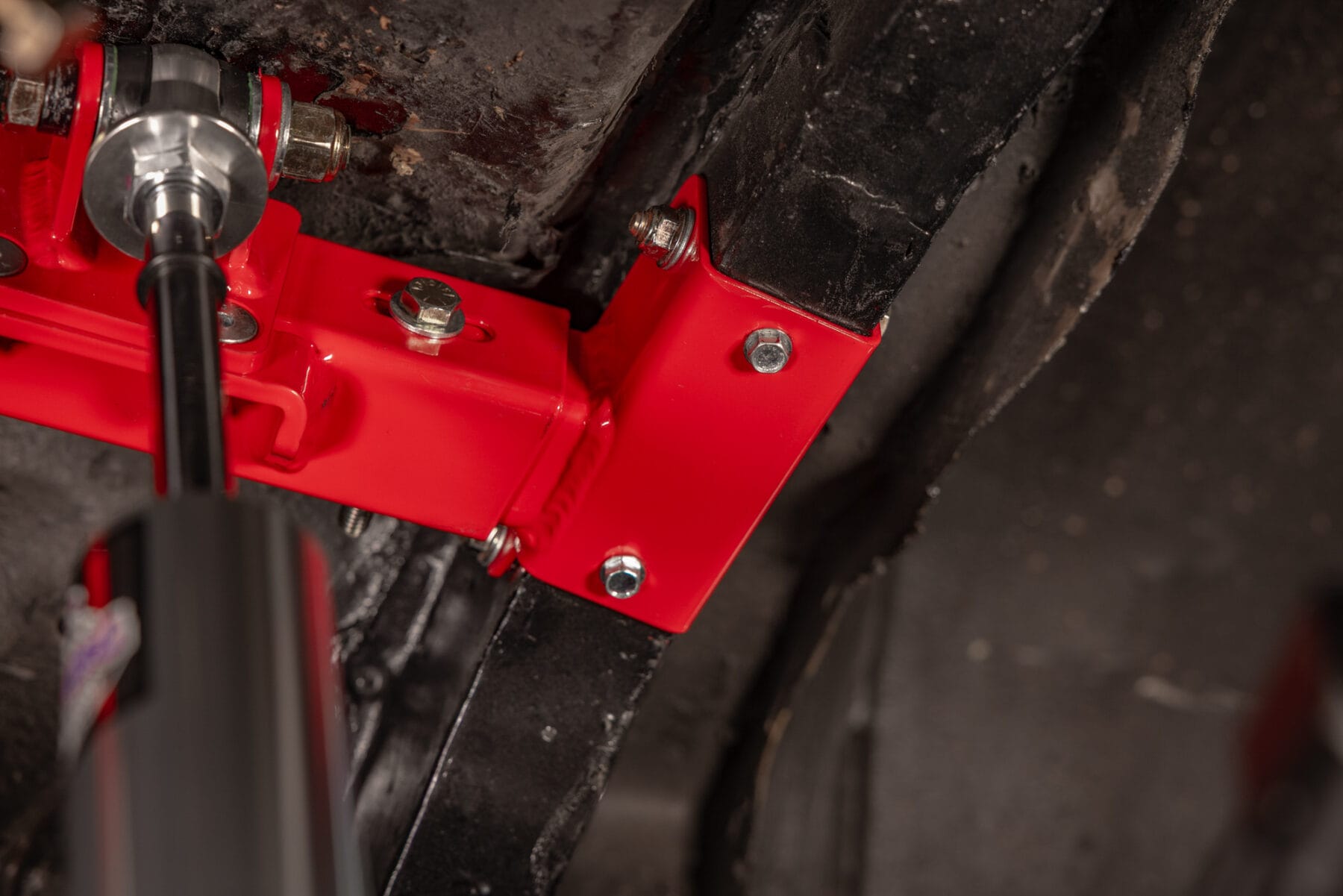

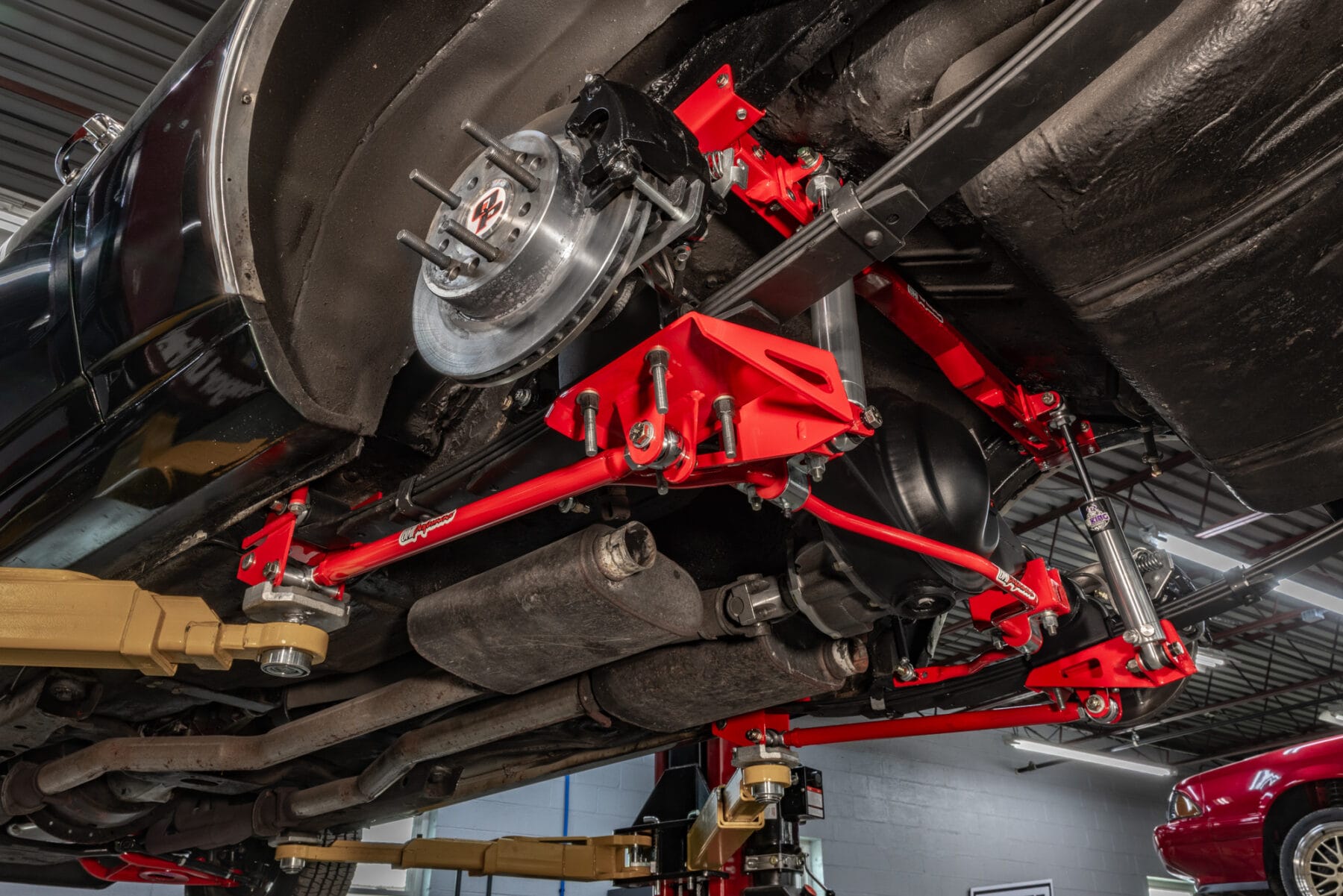

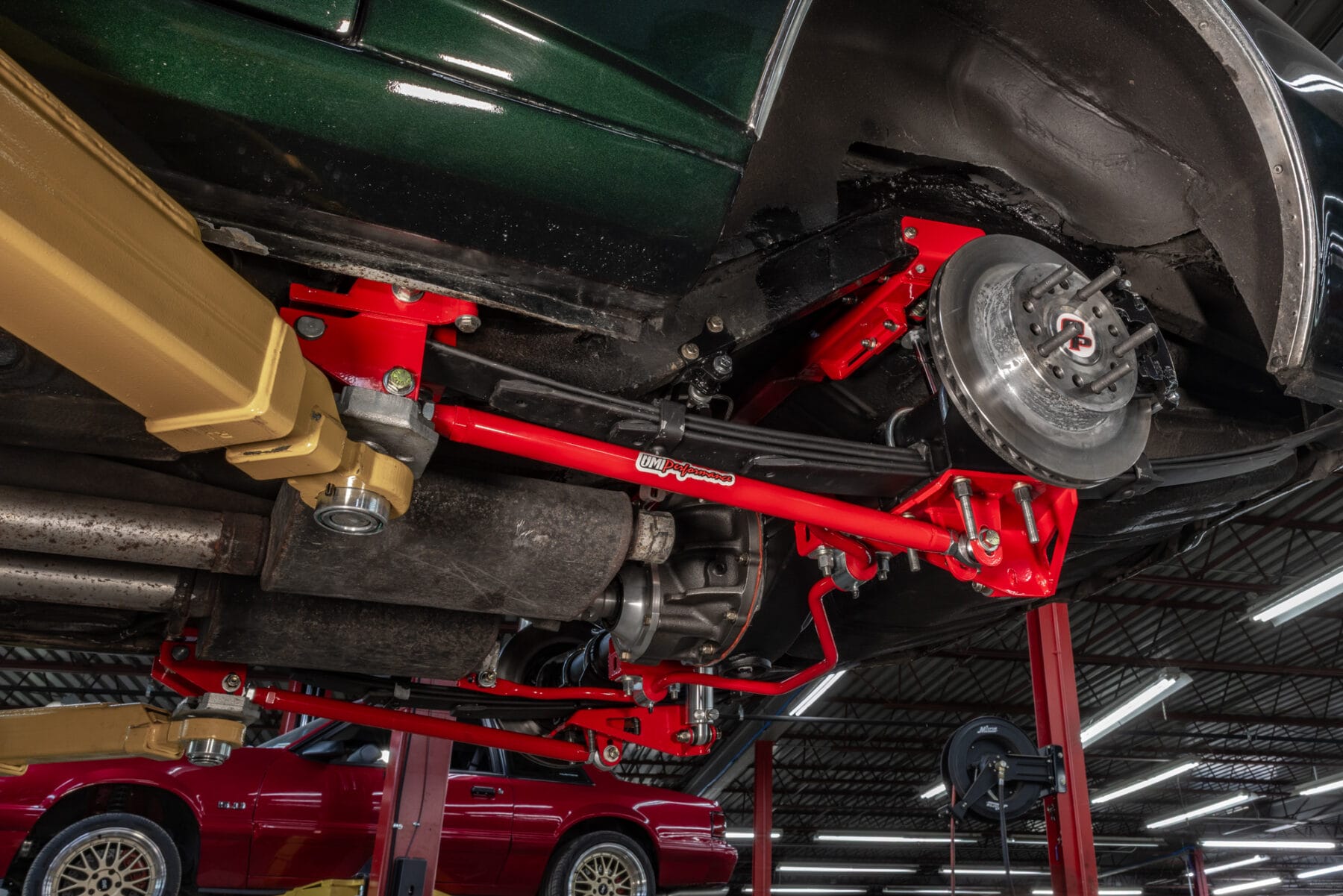

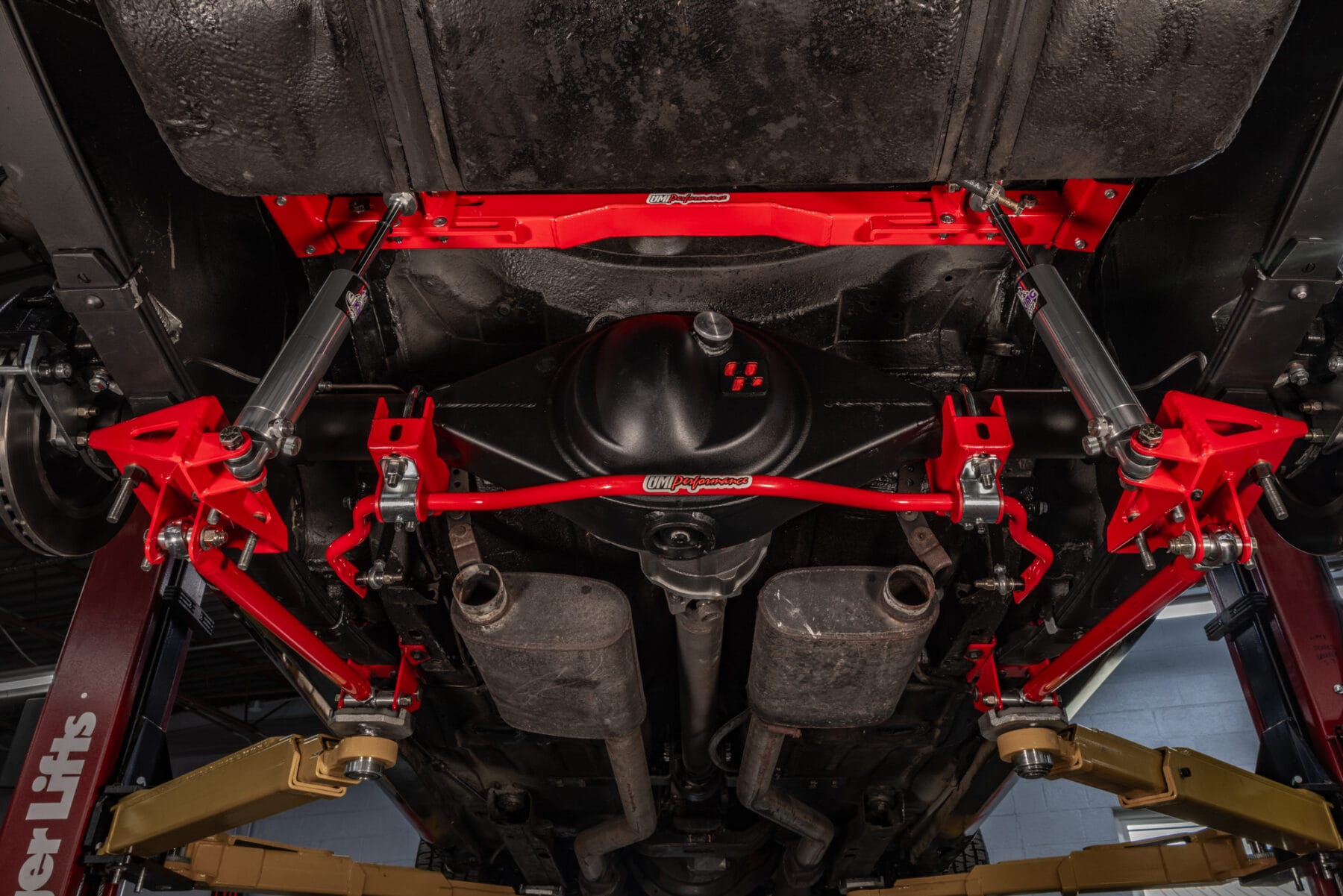

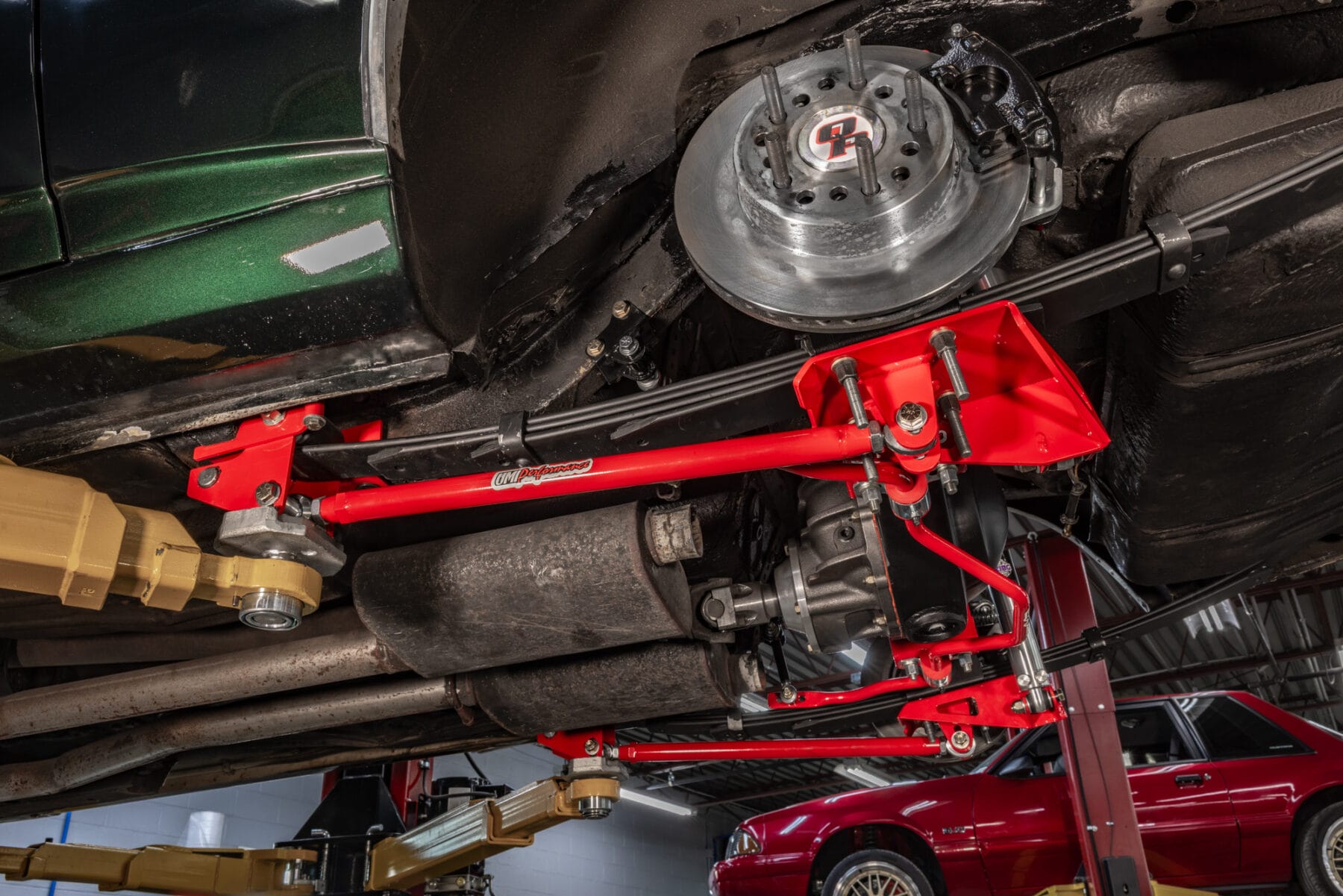

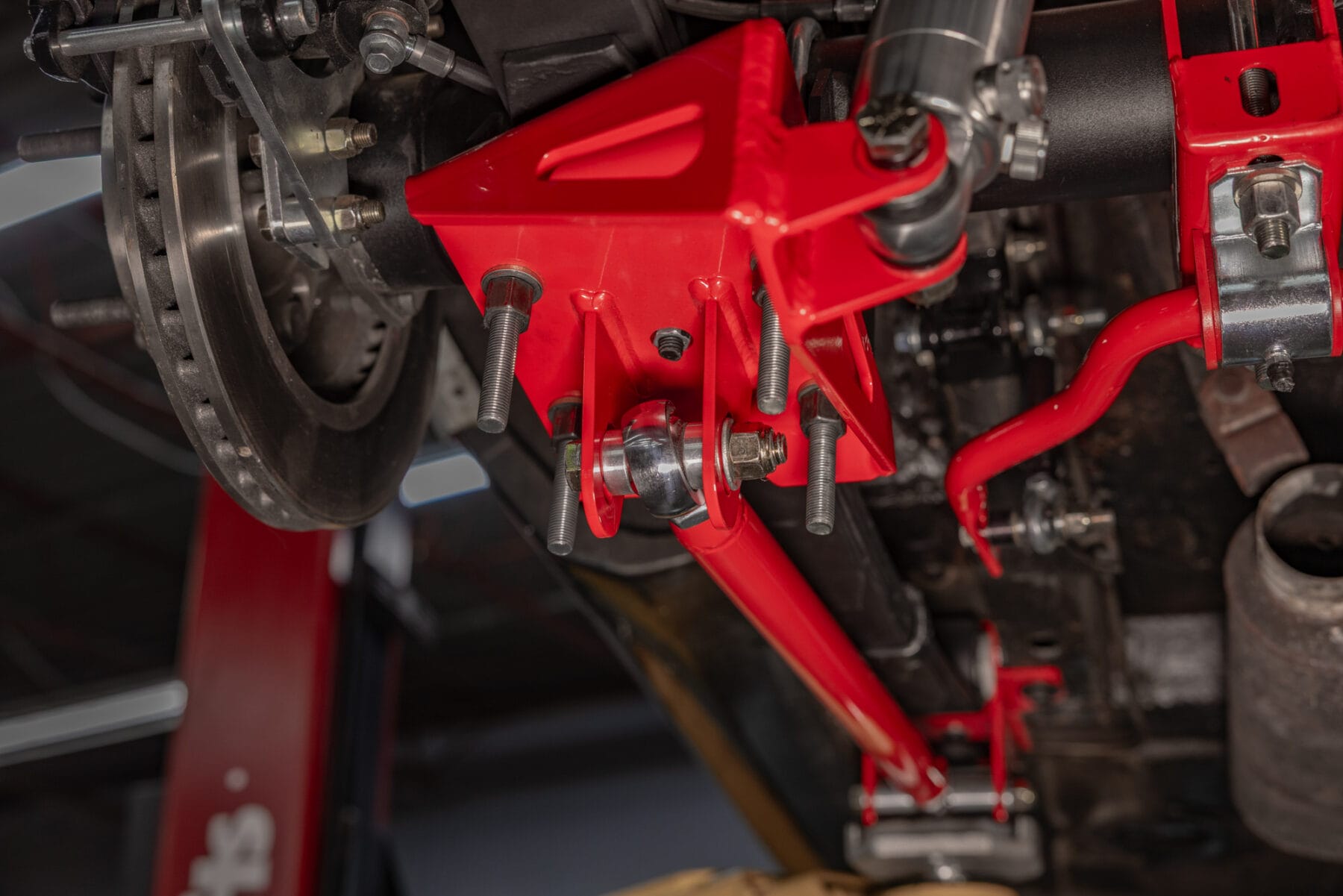

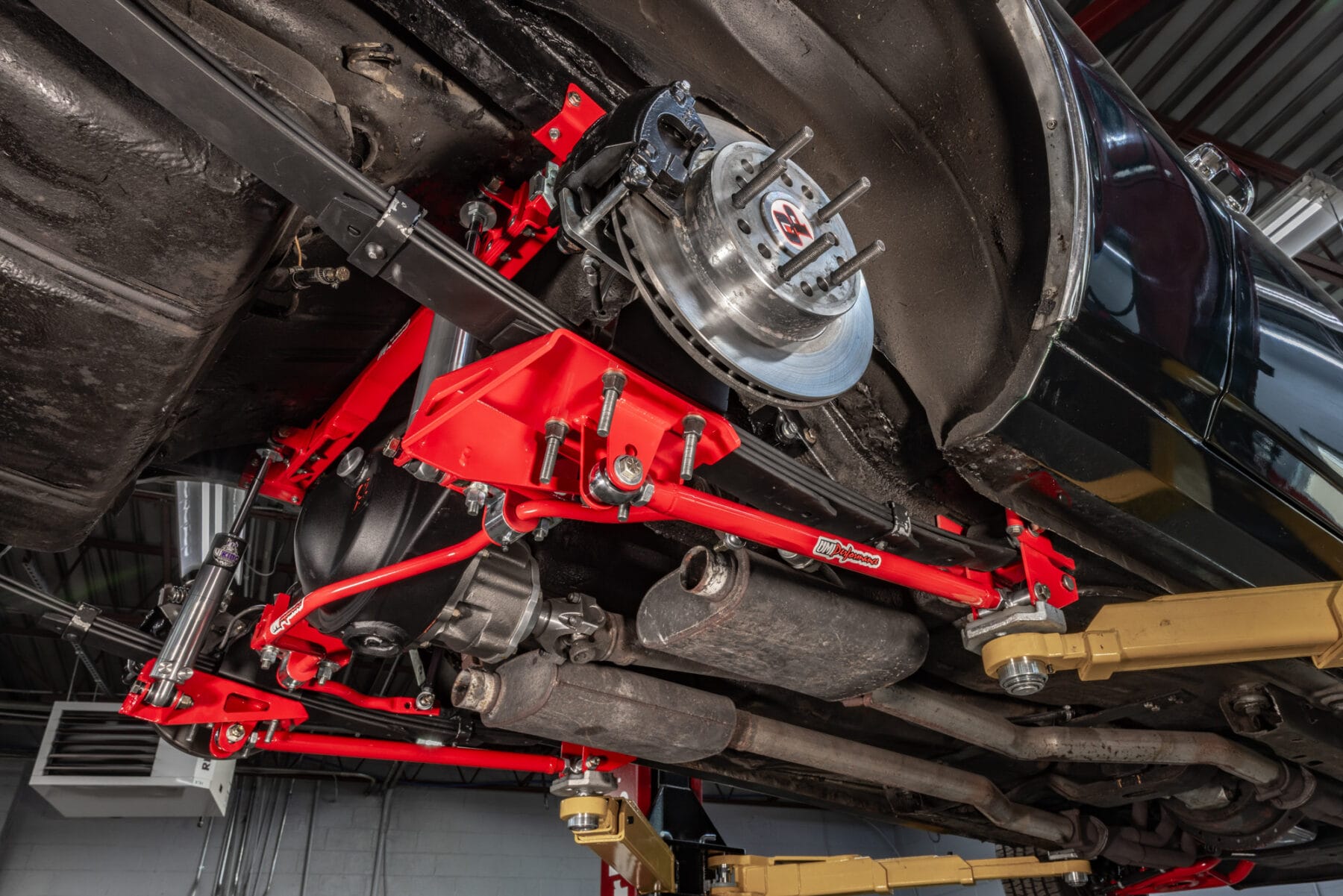

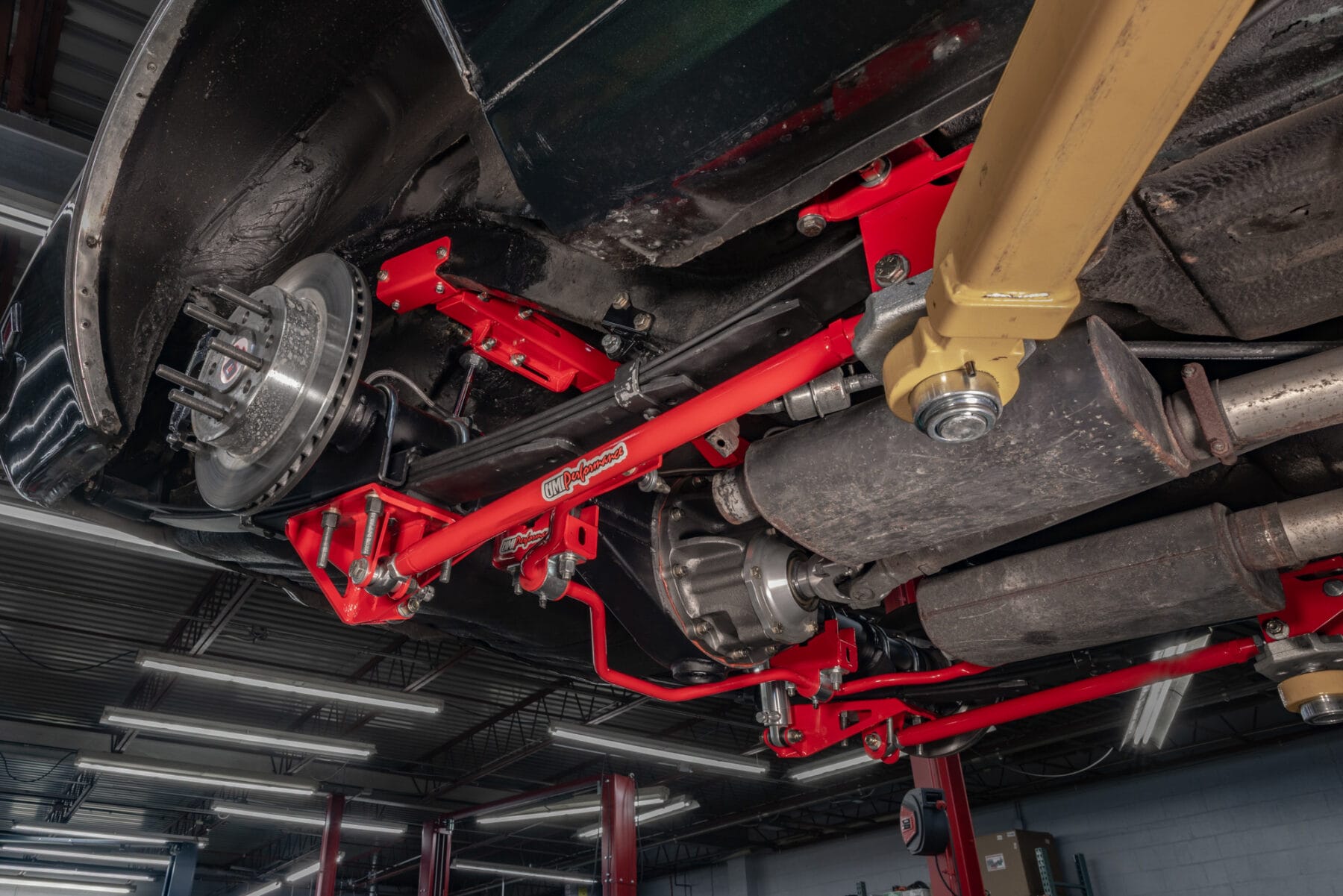

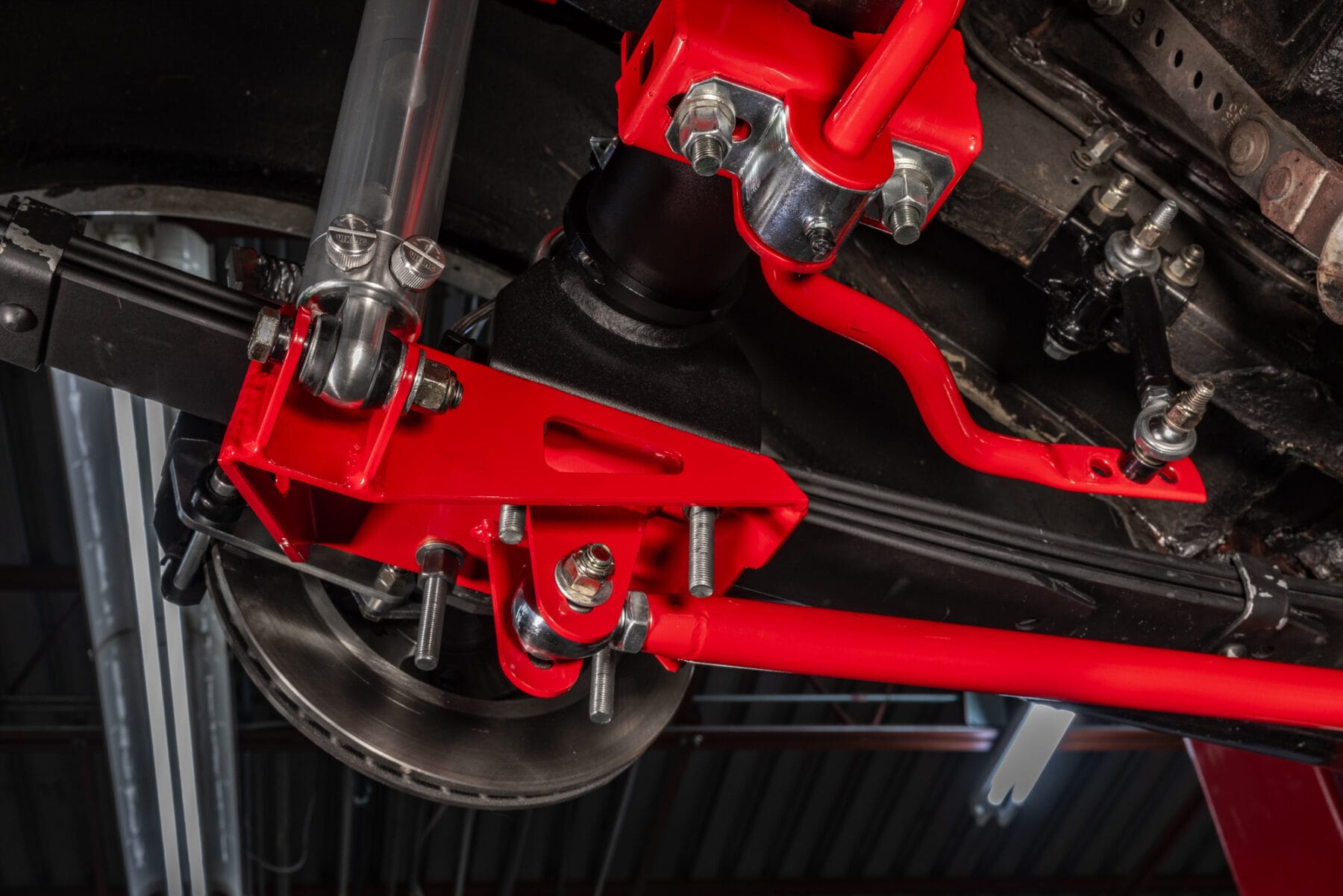

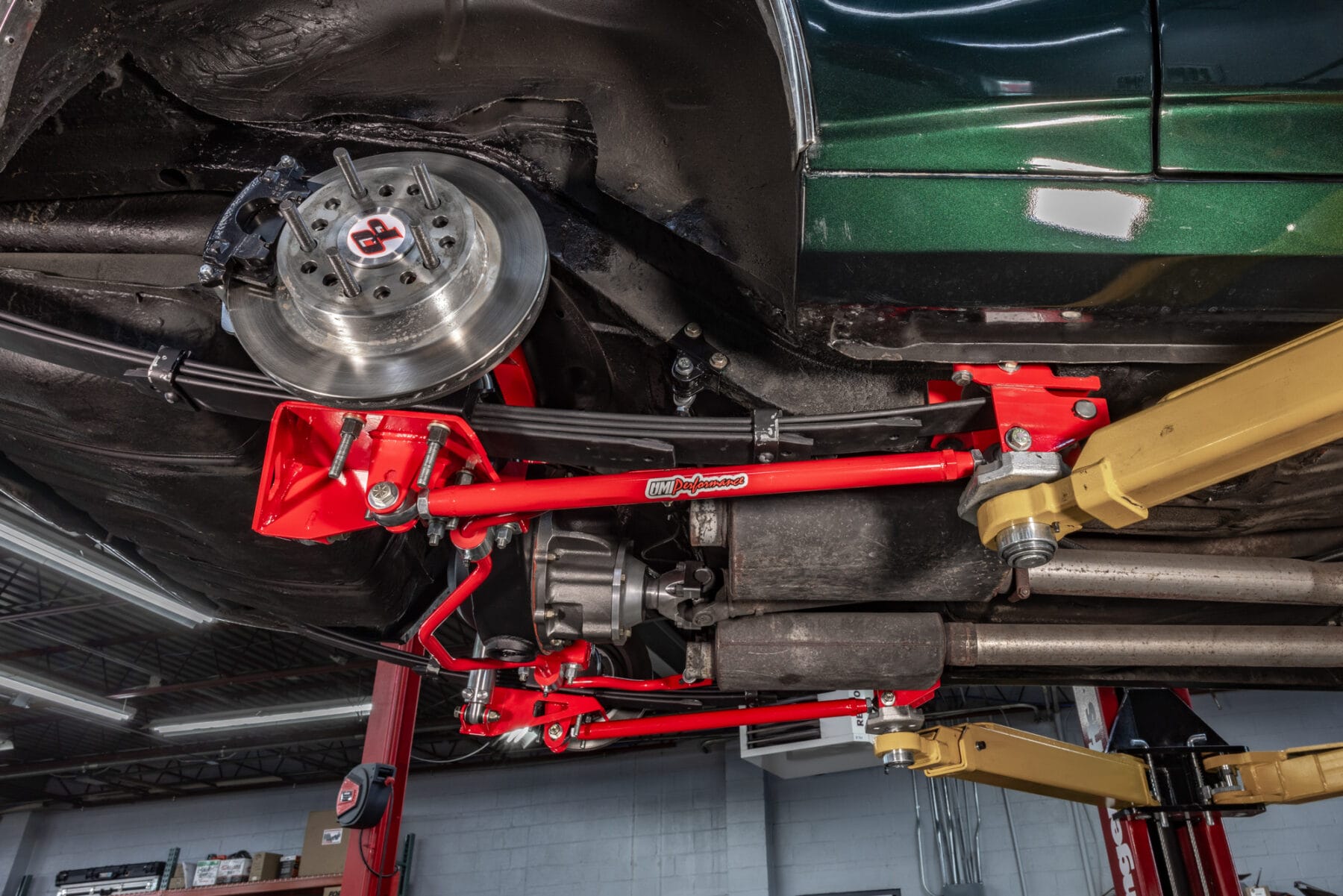

    Installation Pictures

      New Product - Coming Soon

      $1,229.99

      Would you like to be notified when this product becomes available? Submit your email below

      Add to wishlist
      Compare
      SKU: 273124 Categories: , Tag:
      Installation Instructions
      Rear Suspension Upgrade

      273124 – 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars

      Relocate your rear shocks inboard for wider tire clearance and eliminate wheel hop with integrated traction bars. Fully adjustable and built in the USA.

      Wider Tire Clearance Eliminates Wheel Hop Adjustable Shock Angle Coilover Compatible 100% USA-Made
      ✓
      Wider rear tire fitment by relocating factory shocks inboard
      ✓
      Eliminate spring wrap and wheel hop under hard acceleration
      ✓
      Dial in shock angle with 5.5 inches of upper mount adjustability
      ✓
      Accepts multiple shock styles including double-eye and coilover setups

      Description

      What it solves

      Transform the rear suspension of your classic muscle car with the UMI Inboard Rear Shock Relocation and Traction Bar Kit. Factory shock configurations severely limit tire width, while leaf springs without traction devices suffer from extreme wheel hop. UMI’s comprehensive solution moves the shocks inboard to maximize wheel well clearance and adds heavy-duty traction bars to plant the tires under acceleration. The upper mounts feature 5.5 inches of adjustment range, allowing you to fine-tune shock angles and seamlessly accommodate natural unibody frame variances.

      Designed for 1967–1969 GM F-Body models, kit 273124 includes everything needed for a complete foundation upgrade. The system fits both stud-style and double-eye shocks, and accepts coilovers for mono-leaf applications requiring adjustable spring rates. Featuring laser-cut steel plates, 1.25-inch DOM tubing traction bars, and a bolt-on installation requiring only minor drilling, this kit is proudly 100% Made in the USA.

      Product Features

      Key details
      ✓
      Relocates rear shocks inboard for wider tire packages
      ✓
      5.5 inches of upper shock mount adjustability
      ✓
      Accommodates natural variance in unibody frame widths
      ✓
      Compatible with stud-style and double-eye shocks
      ✓
      Coilover-compatible upper mount for mono-leaf setups
      ✓
      Integrated traction bars eliminate spring wrap
      ✓
      Includes front leaf spring mounts and hardware
      ✓
      MIG welded and powder coated in the USA

      Detailed Features

      Technical breakdown
      ✓
      Inboard shock relocation: Moves the rear shocks inside the leaf springs, freeing up critical wheel well space for wider tire and wheel packages.
      ✓

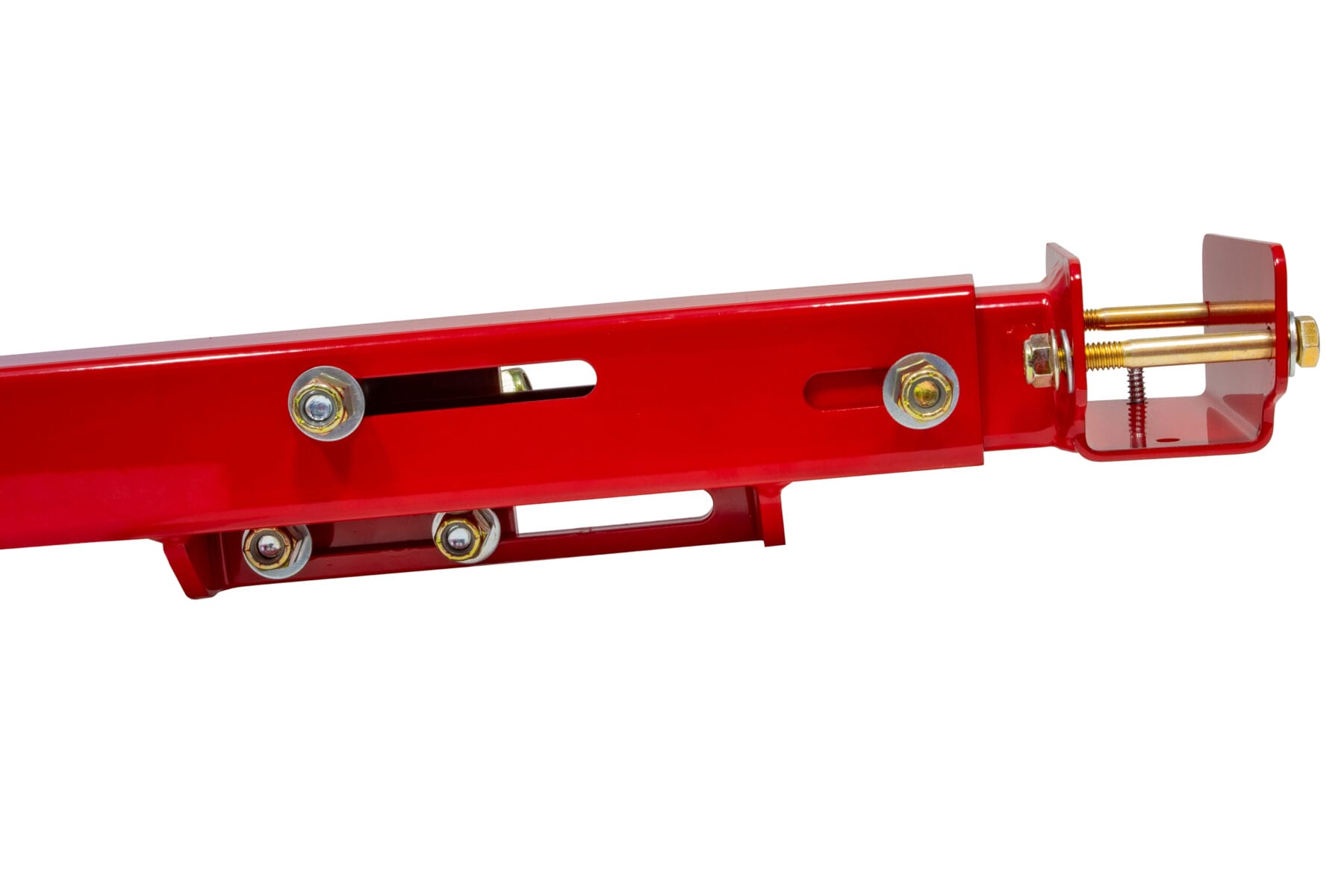

      Adjustable upper mounts: Features 5.5 inches of adjustment range to perfectly dial in shock angle and accommodate variances in factory frame widths.
      ✓
      Multi-shock compatibility: Configured to accept factory stud-style replacements or high-performance double-eye shocks with poly or spherical bearing ends.
      ✓
      Coilover ready design: Upper mount accepts coilover conversions, allowing mono-leaf spring users to add and adjust spring rate precisely.
      ✓

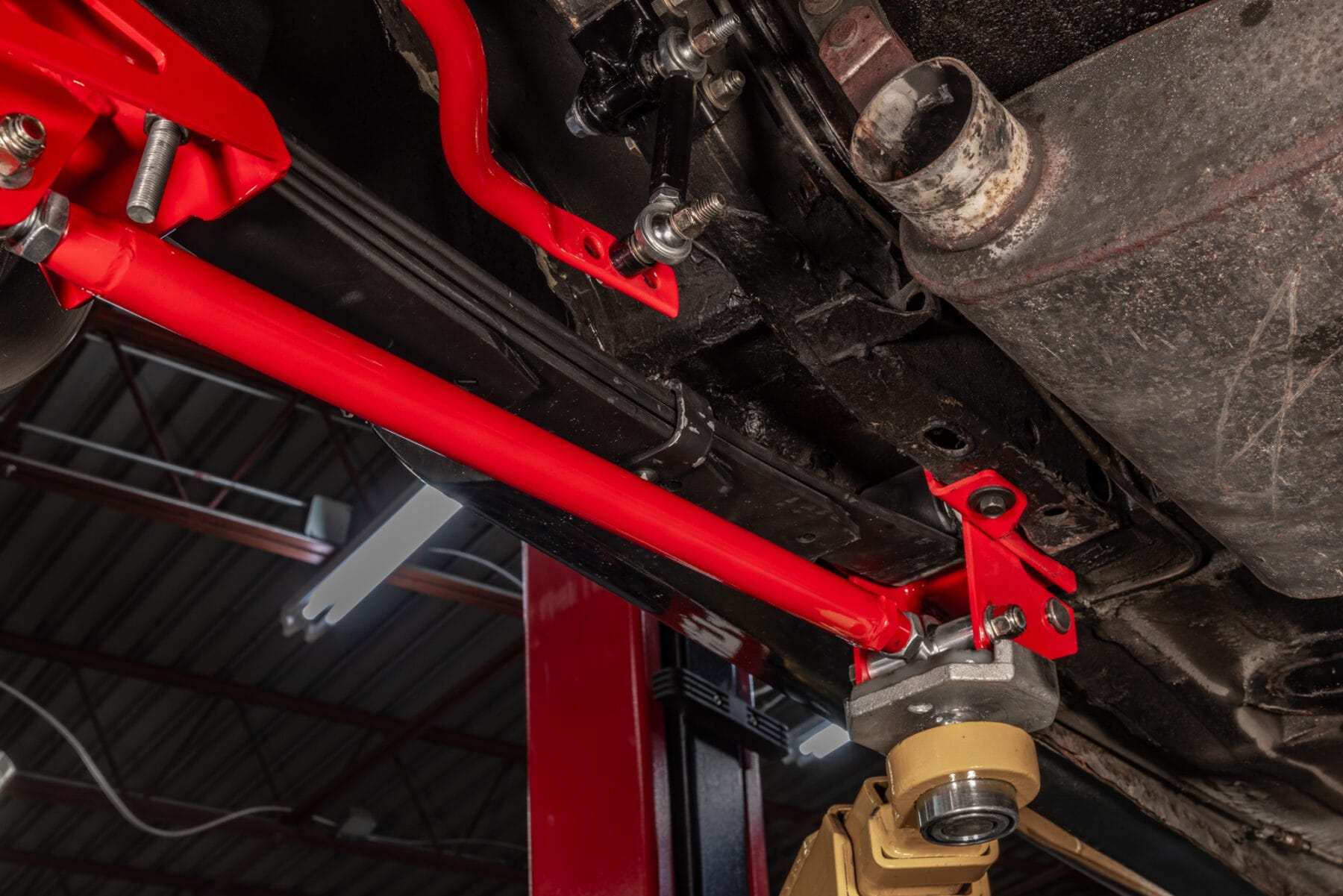

      Integrated traction bars: Built from 1.25-inch .120-wall DOM tubing to control spring wrap and eliminate wheel hop during hard acceleration.
      ✓
      Heavy-duty construction: Upper mounts feature laser-cut 2-inch and 1.75-inch square tubing, while lower mounts utilize 1/4-inch steel plate for maximum strength.
      ✓
      Exhaust clearance: Highly adjustable design allows for installation alongside up to 3-inch dual exhaust systems, though minor tailpipe modifications may be required.
      ✓
      Bolt-in installation: Requires only minor drilling for installation, avoiding heavy fabrication while replacing weak factory stamped steel mounts.

      Product Outcomes

      On-road impact
      ✓
      Unlocks wheel well space to safely run wider rear tires for improved grip.
      ✓
      Eliminates violent wheel hop and spring wrap under heavy acceleration.
      ✓
      Allows precise shock tuning and angle adjustment for optimized low-speed damping.
      ✓
      Accommodates a massive variety of shock setups, from basic upgrades to race coilovers.
      ✓
      Provides a rock-solid rear suspension foundation without requiring major chassis fabrication.

      Installation Summary

      Before you buy

      Overview & Difficulty: Moderate DIY installation requiring basic hand tools, a drill, and a shop press (for leaf spring bushings). The process involves removing the rear shocks, leaf springs, and front mounts, then installing the new upper shock relocation bracket, traction bars, and lower mounts. Minor drilling is required to secure the upper subframe brackets. Torque specs include 22 ft-lbs for frame mounts and 37 ft-lbs for upper shock nuts. Minor exhaust modifications may be necessary to clear the brackets.

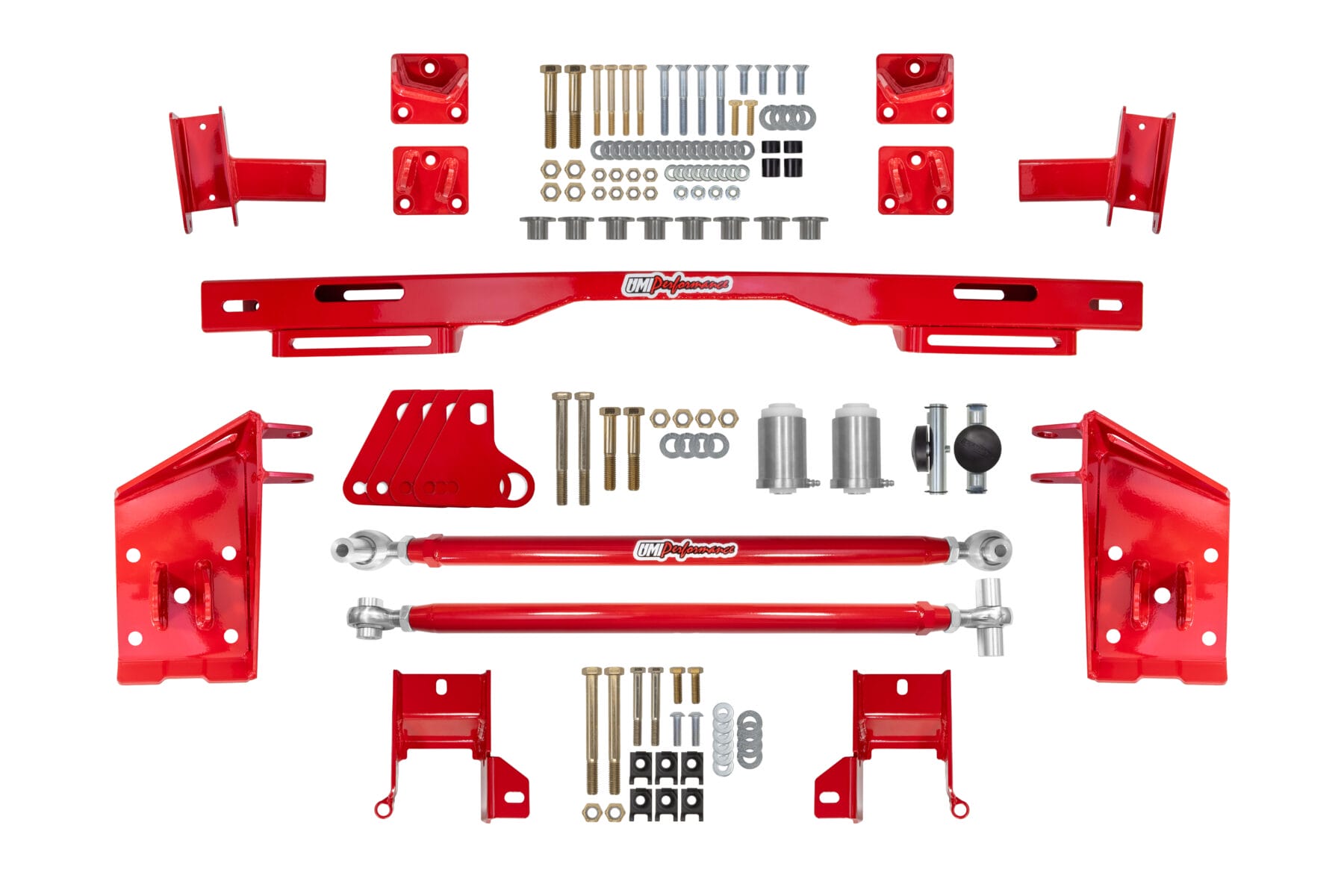

      What’s Included:

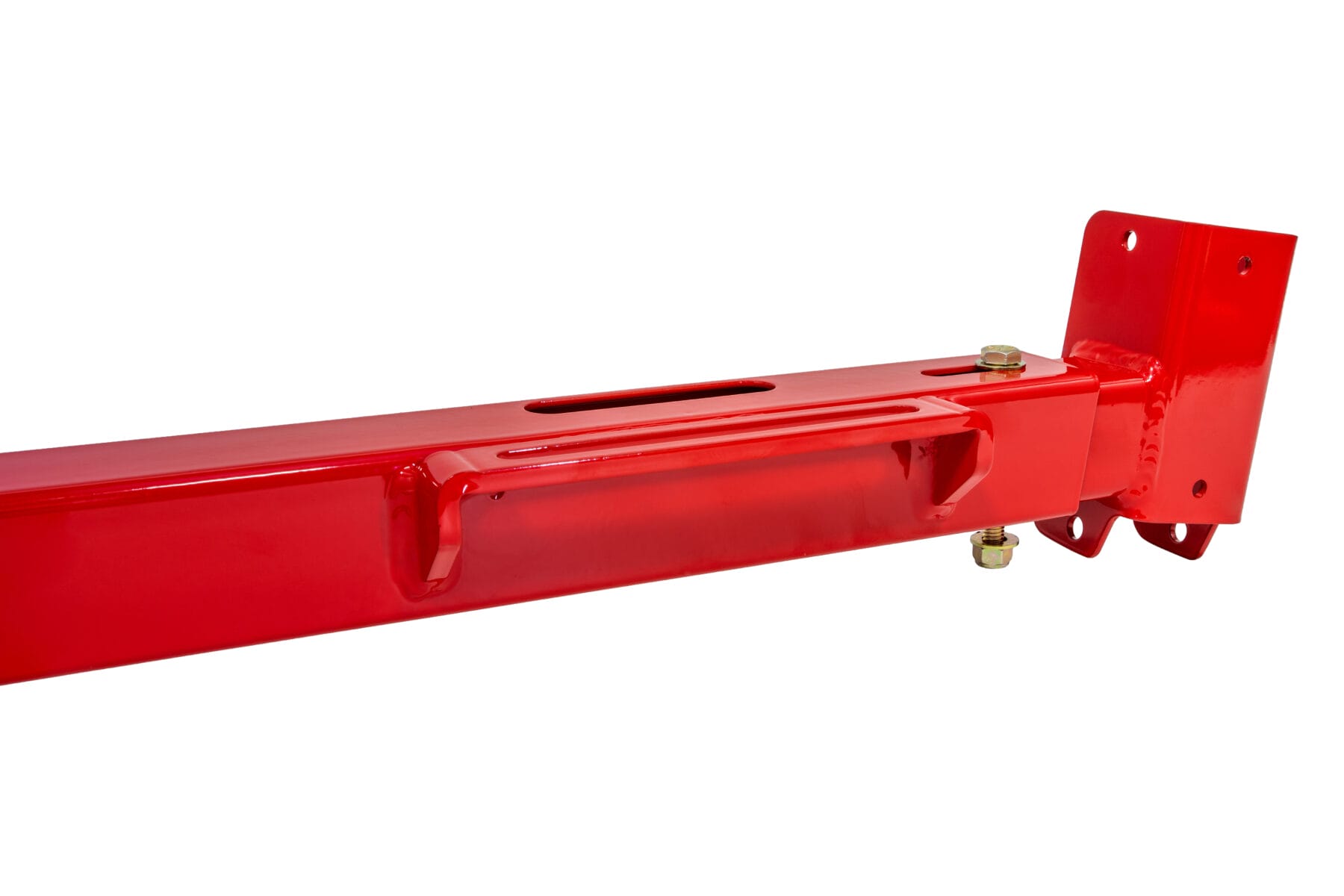

      • Upper Shock Mount (2731DMA) ×1
      • Stud Mount Shock Mounts (Driver & Passenger) ×2
      • Double Sheer Shock Mounts (Driver & Passenger) ×2
      • Frame to Shock Mount Brackets (Driver & Passenger) ×2
      • Leaf Spring Plates (2630) ×2
      • Traction bar tubes, spacers, and rod ends
      • Delrin bushings and aluminum sleeves
      • Complete hardware kit (273130-BK) ×1

      Is This Product Right for You?

      Decision guide

      The UMI 273124 kit is the ultimate solution for F-Body owners looking to maximize rear grip and eliminate wheel hop. By moving the shocks inboard and adding traction bars, builders can run wider tires and launch harder without leaf spring wrap. The extreme adjustability ensures a perfect fit regardless of frame variance or exhaust routing.

      Best For
      ✓
      Pro-touring and street/strip builds needing wider rear tire clearance.
      ✓
      Drivers experiencing wheel hop and spring wrap under hard acceleration.
      ✓
      Builders wanting to convert a mono-leaf setup to rear coilovers.
      ✓
      Enthusiasts seeking extreme shock angle adjustability without heavy fabrication.
      Not Ideal For
      ×
      Purely stock daily drivers retaining factory wheel sizes and power.
      ×
      Vehicles utilizing stock length shocks (specific shorter lengths are required).
      ×
      Lifted applications or those unwilling to potentially modify tailpipes.

      Product FAQ

      Quick answers
      What vehicles does the UMI 273124 kit fit?
      This kit is designed for the 1967–1969 GM F-Body, including the Chevrolet Camaro and Pontiac Firebird.
      Why do I need to relocate the rear shocks?
      Moving the shocks inboard frees up critical space in the wheel well, allowing you to run wider rear tires without interference.
      Does this kit help with wheel hop?
      Yes. The included heavy-duty traction bars control leaf spring wrap, which effectively eliminates wheel hop under hard acceleration.
      What kind of shocks can I use with this kit?
      The system includes mounts for both stud-style and double-eye shocks, making it compatible with everything from standard replacements to high-performance bearing-end shocks.
      Can I use my stock length shocks?
      No. Stock length shocks will not work with this relocated setup. We recommend measuring at ride height or using UMI-specified Viking or Koni shocks.
      Can I run a rear coilover with this setup?
      Yes. For cars with mono-leaf springs, the upper mount accepts a coilover conversion, allowing you to perfectly dial in your rear spring rate.
      Does the installation require welding?
      No. The installation is a bolt-on process that only requires minor drilling into the subframe for the upper relocation brackets.
      Will this clear my aftermarket exhaust?
      The kit features 5.5 inches of adjustability to help clear exhaust systems up to 3 inches, though minor modifications to your tailpipes may still be required.
      What materials are used to build this kit?
      The upper mounts are MIG welded from laser-cut square tubing, the lower mounts use 1/4-inch steel plate, and the traction bars are constructed from 1.25-inch DOM tubing.

      THIS PRODUCT FEATURES

      3/16" Steel Plating

      Designed & Manufactured in the USA

      Durable Powder-Coat

      North American Raw Materials

      Precision Laser Cut Components

      Precision Welds

      Fitment
      Platform
      Manufacturer
      UOMKit
      HardwareIncluded
      ColorBlack, Red
      AdjustableYes
      Direct Bolt-OnYes
      FinishPowder Coat
      MaterialMild Steel
      Features3/16″ Steel Plating, Designed & Manufactured in the USA, Durable Powder-Coat, North American Raw MaterialsAll raw materials used in the production of this product were sourced from North America, Precision Laser Cut ComponentsPlating cut using precision laser technology, Precision Welds
      ModificationsDrilling
      Why Choose

      UMI Performance

      21 Years In The Industry

      North American Raw Materials

      Proudly partnering with leading USA steel suppliers, we source the finest North American mined and milled steel

      Precision Bent DOM Tubing

      Machine-guided DOM tubing bends maintain correct geometry while maintaining material strength.

      Laser Cut Plating

      We take North-American sourced plating and precision-cut each component with the latest laser-cutting technology.

      Durable Powder Coating

      Each finished part is properly prepped and coated with high quality Tiger Dry Lac powder coat, providing a tough long-lasting finish.

      Consistent Welds

      Our highly-skilled welders and robotic-welders provide consistent welds and ultimate part penetration.

      100% USA Made

      We take pride in providing 100% USA-Manufactured suspension components.

        Shipping Guidelines

        Flat Rate Shipping ($12.95) is only offered on Retail orders over $149 shipped via Ground in the Continental United States.

        All International customers are responsible for any applicable duties and/or taxes incurred on your shipment upon delivery.

        Return Information

        All returns are subject to the authorization of UMI Performance, Inc. Please email [email protected] for a Returned Merchandise Authorization (RMA) number. Our Sales team will either authorize or deny the request for return at its discretion. Any product returned without an issued RMA number will not be credited. All returns must be made within 30 days of delivery, be in new condition, be in original sealed packaging and include the RMA number on the outside of the packaging. No exceptions. All products and their packaging must be in new and unopened condition. Products that have been altered, installed, or modified are not returnable. All shipping costs for returns are the responsibility of the customer. All returns are subject to a 20% restocking fee as well as the original shipping charges that UMI Performance may have incurred while shipping your order.

        Due to the majority of Viking products being drop shipped, we can not offer returns on any Viking products. If you purchase a Viking product be sure it fits your application. If you need technical assistance prior to placing order please contact [email protected]

        This '273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars' fits the following platforms:

        1967-1969 GM F-Body

        • 1967-1969 Chevrolet Camaro
        • 1967-1969 Pontiac Firebird

        This 273124 - 1967-1969 GM F-Body Rear Inboard Shock Relocation, With Traction Bars fits the following vehicles:

        Chevrolet

        Camaro

        • 1967 Chevrolet Camaro
        • 1968 Chevrolet Camaro
        • 1969 Chevrolet Camaro

        Pontiac

        Firebird

        • 1967 Pontiac Firebird
        • 1968 Pontiac Firebird
        • 1969 Pontiac Firebird
