2735 – 1967-1969 GM F-Body Sway Bar, Front, Solid, 1-1/8″

New Product - Coming Soon

$319.99

Would you like to be notified when this product becomes available? Submit your email below

Front Sway Bar Kit

2735 – 1967-1969 GM F-Body Sway Bar, Front, Solid, 1-1/8″

Reduce body roll and dramatically improve front-end grip. This CNC-bent 4140 chromoly front sway bar kit delivers flatter cornering for your first-gen F-Body, built in the USA.

Reduces Body Roll CNC Bent Chromoly Polyurethane Bushings Direct Bolt On 100% USA Made
Reduce body roll significantly to enhance front-end cornering grip.
CNC-bent chromoly steel provides superior strength and dependable performance.
Polyurethane bushings improve response and eliminate steering deflection.
100% USA-made in-house for outstanding quality and perfect fitment.

Description

Transform your classic ride's handling with the UMI Performance 2735 1-1/8" Front Sway Bar Kit, engineered to eliminate body roll and deliver flatter, more stable cornering. Built from high-strength 4140 chromoly steel, this solid front sway bar offers a massive increase in torsional rigidity over weak factory bars without sacrificing street comfort. By minimizing lateral deflection, it keeps the front tires flat on the pavement, significantly improving steering response and front-end grip during spirited street driving or competitive autocross events.

Specifically designed for 1967–1969 Chevrolet Camaro and Pontiac Firebird models, this direct bolt-on kit features everything required for a seamless installation, including heavy-duty polyurethane bushings, brackets, and a complete end link kit with premium Grade 8 hardware. The entire assembly is designed, tested, and manufactured in-house in Philipsburg, Pennsylvania, and track-validated at UMI Motorsports Park to ensure race-proven reliability. Upgrade your classic F-body suspension with this 100% American-made handling solution and experience immediate control behind the wheel.

Product Features

Large 1-1/8 inch diameter sway bar
CNC bent 4140 chromoly steel construction
Reduces body roll and improves handling control
Direct bolt-on design with no modification needed
High performance polyurethane bushings and brackets included
Complete end link kit with Grade 8 hardware
Engineered and manufactured in the USA
Track-tested at UMI Motorsports Park

Detailed Features

1-1/8 inch diameter bar: Larger than factory diameter to provide a substantial increase in roll resistance and flatter cornering.
CNC bent 4140 chromoly: Precision-formed chromoly steel ensures outstanding structural integrity and durable spring properties under heavy cornering loads.
Polyurethane frame bushings: Greasable polyurethane bushings minimize deflection and allow the sway bar to react instantly to suspension changes.
Complete end link kit: Includes premium polyurethane bushings and zinc-plated sleeves that improve steering response over worn factory parts.
Grade 8 mounting hardware: Heavy-duty yellow-zinc plated Grade 8 fasteners deliver superior strength and reliable clamping force for worry-free driving.
Direct bolt-on installation: Engineered to mount directly to factory locations with standard hand tools, making upgrade quick and easy.
Durable powder coat finish: Premium powder coating provides excellent corrosion protection and keeps your undercar components looking new for years.
In-house American manufacturing: Proudly designed, manufactured, and track-tested in Philipsburg, Pennsylvania to meet UMI's strict quality standards.

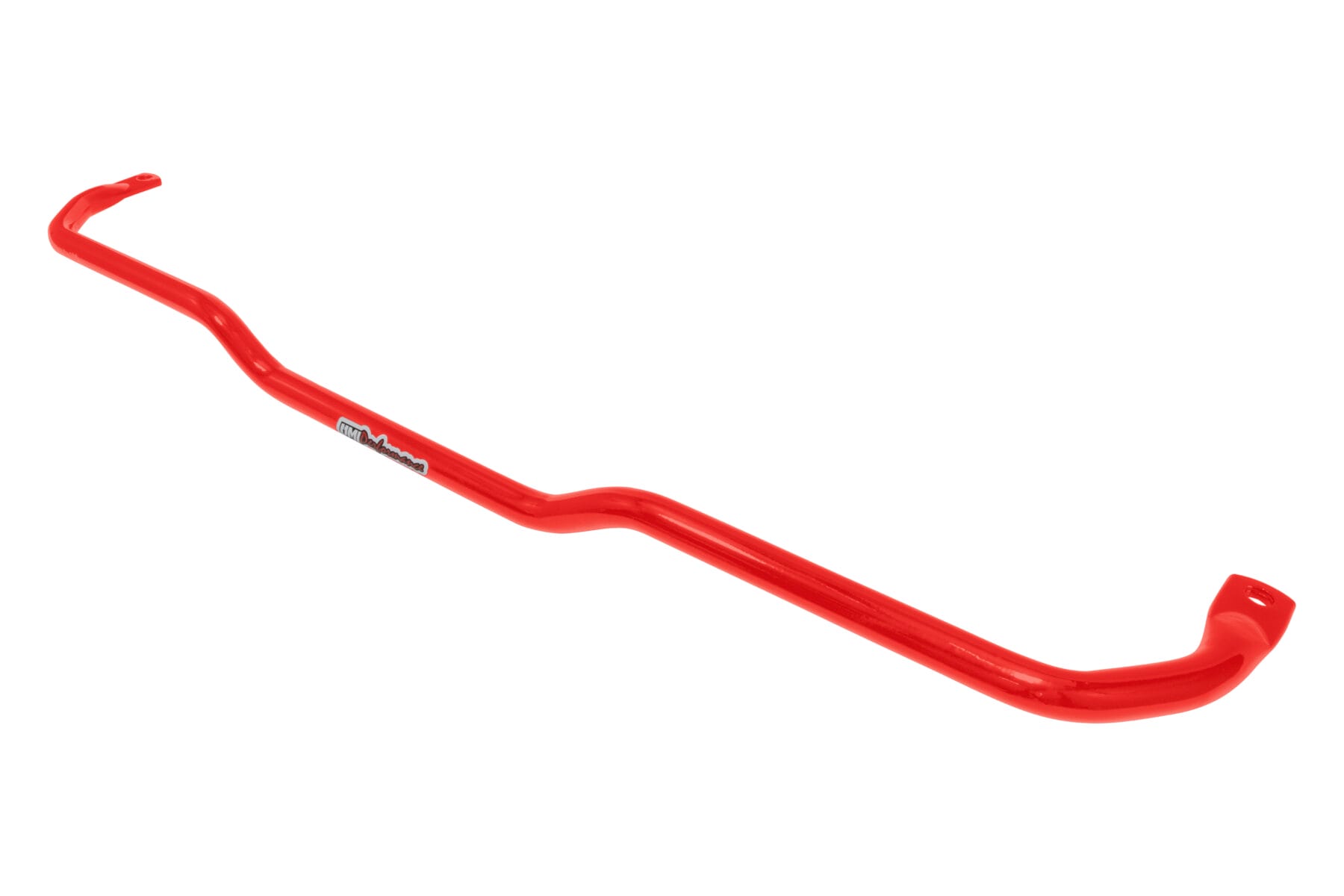

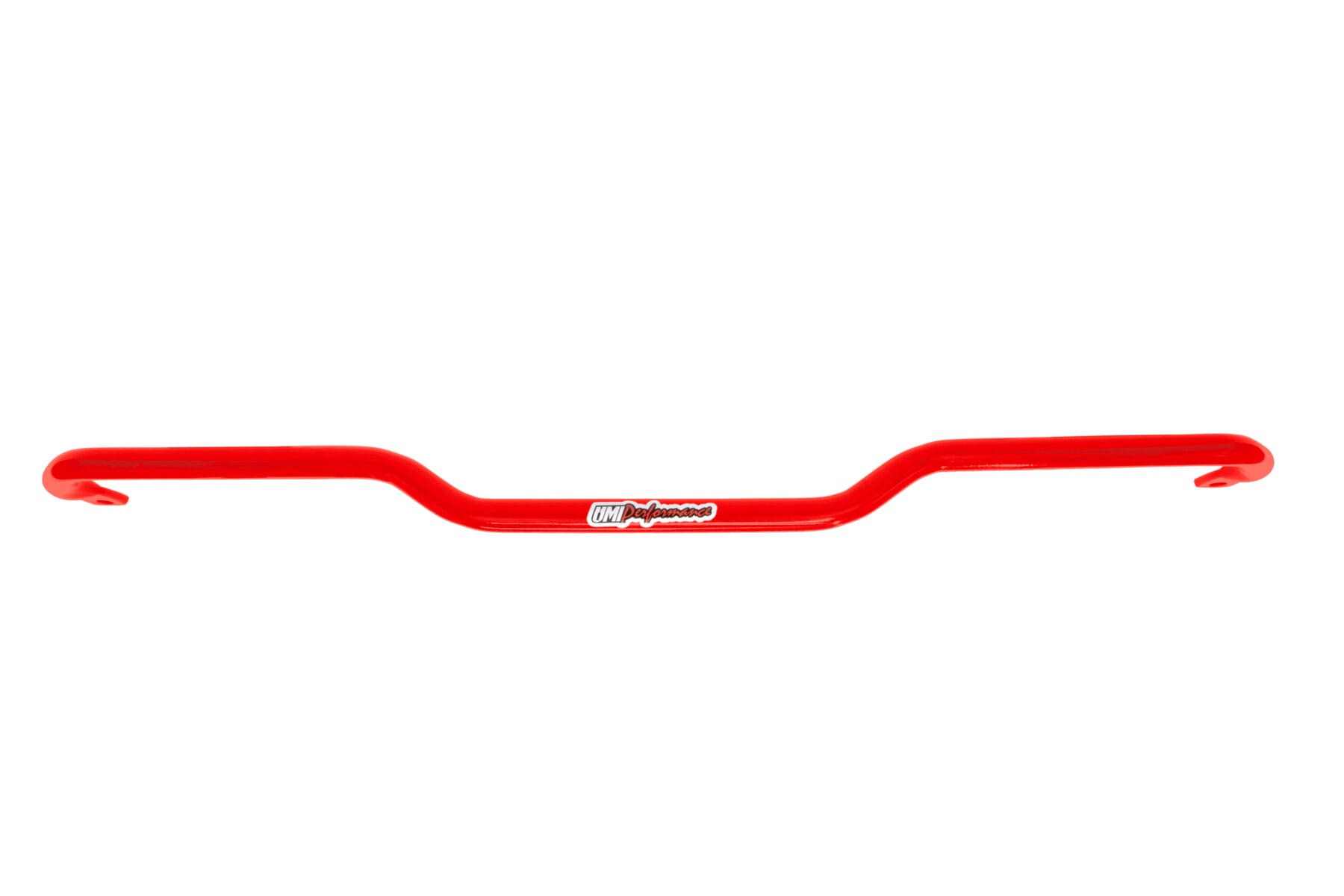

HD 1-1/8 inch Bar

4140 chromoly bar with larger diameter than stock means flatter cornering and better handling for your classic F-body.

Hi-Performance Polyurethane

Greaseable high performance polyurethane bushings are a great combination of performance and quietness.

High Grade End Links

Poly bushing end links tighten handling and improve responsiveness.

Product Outcomes

Decreases body roll significantly to keep your F-body flatter through hard corners.
Enhances steering feedback and front-end grip for more confidence during spirited drives.
Eliminates slop and slow suspension response associated with worn-out factory setups.
Delivers a firmer handling feel without sacrificing the comfortable ride of your classic.
Optimizes tire contact with the pavement to prevent uneven tread wear during cornering.

Installation Summary

Overview & Difficulty: Easy DIY installation requires basic hand tools, a jack, and jack stands, taking approximately 1–2 hours. Elevate the vehicle's front subframe to unload the control arms, then remove the factory sway bar and end links. Apply grease to the polyurethane bushings and mount them with the metal straps. Torque the frame brackets to 35 ft-lbs. Finally, install the new end links, lowering the car to ride height before tightening to roughly 14 ft-lbs or until the bushings compress to washer diameter.

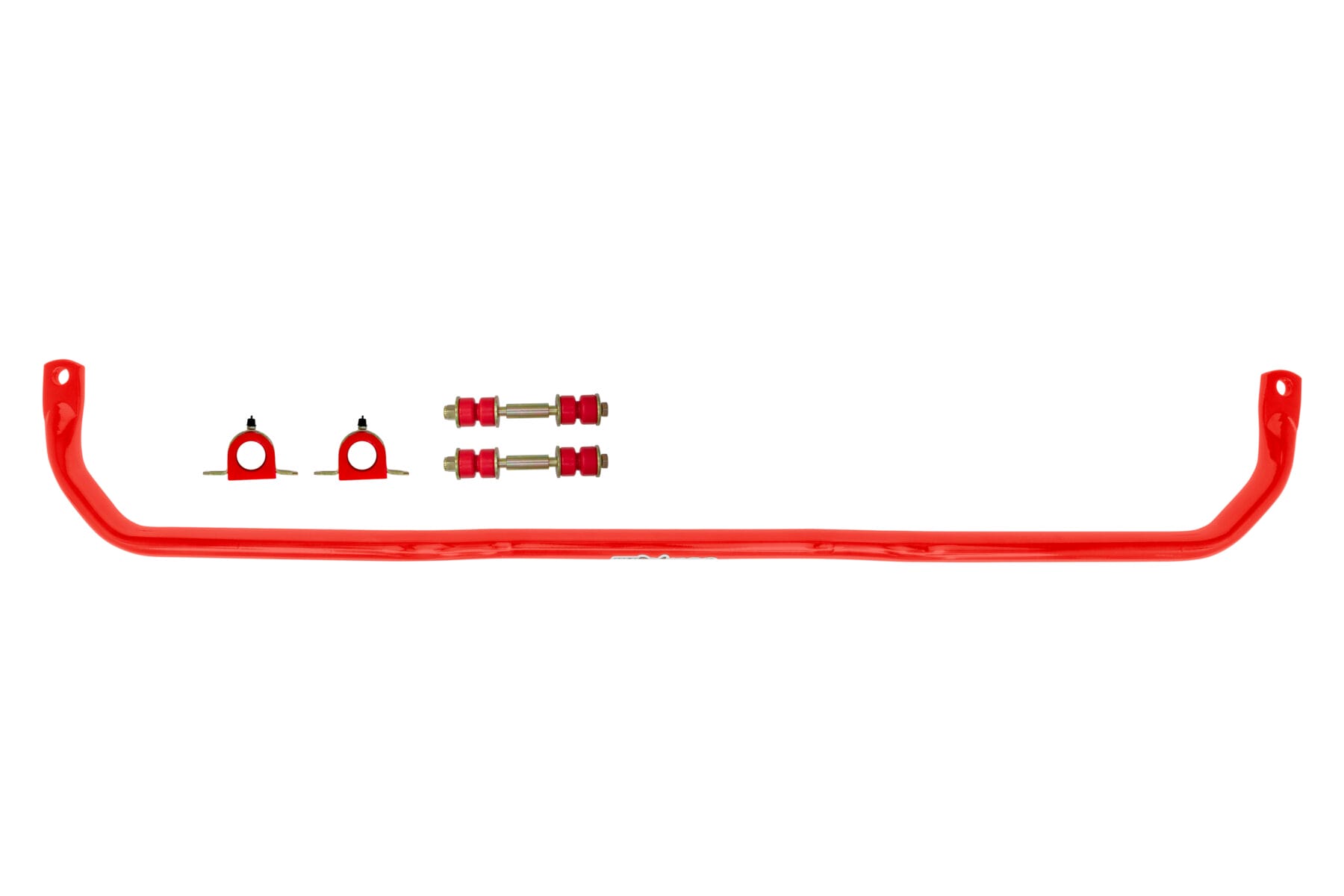

What’s Included:
  • 1-1/8" Front Sway Bar (Part # 2735) ×1
  • Greasable Polyurethane Frame Bushing Kit with Metal Straps (Part # U-62528) ×1
  • Premium Polyurethane End Link Kit (Part # 90078) ×1
  • Grade 8 Fastener Kit including 3/8" hex bolts, nyloc nuts, sleeves, and washers ×1

Is This Product Right for You?

The UMI 2735 front sway bar kit is the perfect solution for first-gen F-body owners wanting to flatten body roll and sharpen steering response without ruining their street ride. By upgrading to a modern 1-1/8" diameter chromoly bar, you'll experience a tighter, more athletic handling performance that makes street cruising and weekend track days far more enjoyable.

Best For
Classic Camaro and Firebird owners wanting to reduce excessive body roll.
Enthusiasts looking for a simple, direct bolt-on suspension upgrade with hand tools.
Drivers who want sharper cornering response without sacrificing their daily ride comfort.
Not Ideal For
×
Pure concours restoration builders requiring 100% factory-correct visual detailing.
×
Vehicles with highly modified non-stock front subframes that require custom sway bars.
×
Owners who already have a premium aftermarket heavy-duty front sway bar installed.

Product FAQ

What vehicles does the UMI 2735 front sway bar kit fit?
The UMI 2735 kit is designed specifically for 1967–1969 GM F-Body vehicles, including the Chevrolet Camaro and Pontiac Firebird, providing a perfect OEM-style replacement fit.
How does this sway bar reduce body roll on first-gen F-bodies?
The bar has a larger 1-1/8 inch diameter and is CNC bent from chromoly, increasing torsional resistance to keep your vehicle flatter in corners.
Is this sway bar kit a direct bolt-on installation?
Yes. It is designed to be a direct bolt-on installation that mounts to your F-body's factory frame locations using simple hand tools.
What materials are used to construct the UMI 2735 sway bar?
The sway bar is CNC-bent from premium 4140 chromoly steel to provide superior strength, spring rate memory, and long-term durability.
How is this front sway bar protected against rust and corrosion?
Every UMI 2735 sway bar features a durable, high-quality powder coat finish that resists road grime, moisture, and harsh environmental elements.
Does this kit work with factory or aftermarket control arms?
This kit is fully compatible with both OEM and aftermarket control arms, making it a highly versatile upgrade for any suspension setup.
What type of bushings are included in the 2735 kit?
The kit features heavy-duty polyurethane bushings that eliminate the flex of factory rubber, enhancing steering response and immediate handling feedback.
Has this sway bar kit been tested on the track?
Yes. This front sway bar has been extensively validated at UMI Motorsports Park to ensure excellent durability and real-world handling performance.
Is all of the necessary mounting hardware included in the box?
Yes. The kit ships with Grade 8 yellow-zinc hardware, greaseable polyurethane frame bushings, mounting clamps, and premium end links.
Why should I choose the UMI 2735 over other sway bars?
The UMI 2735 combines premium 4140 chromoly construction, greaseable polyurethane bushings, high-strength hardware, and race-proven testing to deliver unmatched F-body handling.
Fitment
Platform
Manufacturer
UOMEach
HardwareIncluded
ColorBlack, Red
AdjustableYes
Bushing TypePolyurethane
Direct Bolt-OnYes
FinishPowder Coat
MaterialChromoly
Why Choose

UMI Performance

21 Years In The Industry

Shipping Guidelines

Flat Rate Shipping ($12.95) is only offered on Retail orders over $149 shipped via Ground in the Continental United States.

All International customers are responsible for any applicable duties and/or taxes incurred on your shipment upon delivery.

Return Information

All returns are subject to the authorization of UMI Performance, Inc. Please email [email protected] for a Returned Merchandise Authorization (RMA) number. Our Sales team will either authorize or deny the request for return at its discretion. Any product returned without an issued RMA number will not be credited. All returns must be made within 30 days of delivery, be in new condition, be in original sealed packaging and include the RMA number on the outside of the packaging. No exceptions. All products and their packaging must be in new and unopened condition. Products that have been altered, installed, or modified are not returnable. All shipping costs for returns are the responsibility of the customer. All returns are subject to a 20% restocking fee as well as the original shipping charges that UMI Performance may have incurred while shipping your order.

Due to the majority of Viking products being drop shipped, we can not offer returns on any Viking products. If you purchase a Viking product be sure it fits your application. If you need technical assistance prior to placing order please contact [email protected]

This '2735 - 1967-1969 GM F-Body Sway Bar, Front, Solid, 1-1/8"' fits the following platforms:

1967-1969 GM F-Body

  • 1967-1969 Chevrolet Camaro
  • 1967-1969 Pontiac Firebird

This 2735 - 1967-1969 GM F-Body Sway Bar, Front, Solid, 1-1/8" fits the following vehicles:

Chevrolet

Camaro

  • 1967 Chevrolet Camaro
  • 1968 Chevrolet Camaro
  • 1969 Chevrolet Camaro

Pontiac

Firebird

  • 1967 Pontiac Firebird
  • 1968 Pontiac Firebird
  • 1969 Pontiac Firebird
