2258-1R – 2016-2024 Camaro Coilover Kit, Rear, Viking Shocks, Race-Handling

UMI Performance Viking Performance
Click to enlarge

    Installation Pictures

      $1,109.99

      Product Inquiry
      ⚠ See fitment note
      Add to wishlist
      Compare
      SKU: 2258-1R Tag:
      Installation Instructions
      Coilover Kit

      2258-1R – 2016-2024 Camaro Coilover Kit, Rear, Viking Shocks, Race-Handling

      Maximum rear-end control for serious track and autocross builds. Features UMI double-shear mounts, Viking Crusader race valving, and 550 lb/in springs.

      Double Adjustable Crusader Valving 550 lb/in Springs Bearing Mounts Track Setup
      ✓
      Race-focused spring rates utilizing 550 lb/in coils for high-grip tires
      ✓
      Viking Crusader valving for aggressive autocross and road course duty
      ✓
      Independent compression & rebound to dial in corner weights and squat
      ✓
      Double-shear upper mounts provide a rigid, flex-free chassis foundation

      Description

      What it solves

      UMI’s 2258-1R Rear Coilover Kit is the ultimate race-focused solution for 6th Gen Camaro owners demanding maximum rear-end control, consistency, and track tuning capability. Designed for serious road race, time-trial, and national-level autocross builds, this package eliminates the factory divorced spring setup. By pairing stiff 550 lb/in springs with Viking Crusader double adjustable shocks, it delivers the robust platform support required for running high-grip tires, aerodynamic upgrades, and aggressive track alignments.

      Built for 2016–2024 Camaro models, the 2258-1R system integrates seamlessly into the chassis using UMI’s extreme-duty double-shear upper mounts. The coilover design provides precise ride-height and corner-weight adjustments to optimize cross-weight and rake. With its direct bolt-on installation using factory lower control arm points and zero welding required, this USA-engineered kit allows you to quickly dial in compression and rebound to master any track surface.

      Product Features

      Key details
      ✓
      UMI 2258 double-shear upper mount brackets
      ✓
      Viking A392GP Crusader double adjustable shocks
      ✓
      Eye-to-eye shock configuration with bearing mounts
      ✓
      2.55" I.D. × 12" tall 550 lb/in race springs
      ✓
      Full ride-height and corner-weight adjustability
      ✓
      Broad 13.47–20.22 inch travel/length range
      ✓
      100% bolt-on with no chassis cutting required
      ⚠
      Fitment Note: A MagneRide delete module is required when using Viking, Penske, or other aftermarket shocks when installed on vehicles equipped with factory MagneRide struts. This module bypasses the MagneRide system and eliminates error codes on the dash.

      Detailed Features

      Technical breakdown
      ✓
      Viking Crusader double adjustable shocks: Features race-oriented valving to provide independent tuning of compression and rebound for high-speed track stability.
      ✓
      550 lb/in coilover springs: The 12-inch tall, high-rate springs provide the aggressive support needed for high-grip racing compounds and aero-equipped cars.
      ✓
      Double-shear shock mounts: UMI's laser-cut brackets replace the weak factory single-shear setup, eliminating flex and improving suspension responsiveness.
      ✓
      Coilover height adjustment: Threaded shock bodies allow precise spring preload and ride-height changes, enabling perfect corner-balancing for competition.
      ✓
      Bearing mount shock ends: Enhances pivot articulation and prevents binding under extreme suspension travel during road racing and autocross.
      ✓
      Direct bolt-on installation: Attaches securely to factory chassis locations and OEM or aftermarket lower control arms using supplied premium hardware.

      Caster/Camber Front Kit

      Designed specifically for 2016–2024 Chevrolet Camaro models, this direct bolt-on system provides massive adjustability.
      SHOP COILOVERS

      Rear Coilover Kits

      Designed for 2016–2024 Chevrolet Camaro models, the kit anchors to the chassis using UMI’s robust 2258 double-shear upper mounts.
      SHOP COILOVERS
      2534 - 2016-2024 Camaro Rear Sway Bar

      2534 - 2016-2024 Camaro Rear Sway Bar

      $319.99
      Select options
      2535 - 2016-2024 Camaro V8 Front Sway Bar

      2535 - 2016-2024 Camaro V8 Front Sway Bar

      $389.99
      Select options
      2549 - 2016-2024 Camaro Front Sway Bar End Links

      2549 - 2016-2024 Camaro Front Sway Bar End Links

      $199.99
      Add to cart
      2548 - 2016-2024 Camaro Rear Sway Bar End Links

      2548 - 2016-2024 Camaro Rear Sway Bar End Links

      $169.99
      Add to cart

      Rear Control Arms

      SHOP REAR SUSPENSION

      Product Outcomes

      On-road impact
      ✓
      Delivers the ultra-stiff rear platform support needed for sticky R-compound tires.
      ✓
      Maximizes corner-exit grip by allowing independent tuning of rear squat and body roll.
      ✓
      Enables precise corner-balancing for a perfectly neutral, competition-ready chassis.
      ✓
      Withstands national-level autocross and time-trial abuse without component deflection.

      Installation Summary

      Before you buy

      Overview & Difficulty: Moderate DIY install requiring floor jacks, jack stands, and hand tools; 2–4 hours. Disassemble the rear suspension by removing wheels, fender liners, factory shocks, and coil springs. Bolt the UMI 2258 upper brackets into place (torque M10 nuts to 30-35 ft/lbs). Assemble the Viking coilovers (body/adjusters facing UP) with the 12-inch springs. Install the bearing mount spacers per Viking instructions. Mount the top of the shock using the 1/2-inch bolt and spacer (torque to 70 ft/lbs), and secure the lower factory bolt. Magneride vehicles must disconnect the suspension harness.

      What’s Included:
      • UMI 2258 driver and passenger upper mount brackets
      • Viking A392GP Crusader double adjustable rear shocks ×2
      • Viking 12DP550 2.55" I.D. × 12" 550 lb/in springs ×2
      • Complete Grade 8 upper mounting hardware and spacers

      Is This Product Right for You?

      Decision guide

      The UMI 2258-1R race kit is uncompromising by design. Built specifically for the rigors of track days, time trials, and autocross competition, the 550 lb/in spring rate and Crusader valving offer the ultimate in chassis tuning. This kit requires drivers to accept a firmer, track-biased ride in exchange for absolute stability and grip at the limit.

      Best For
      ✓
      National-level autocrossers and time-trial competitors.
      ✓
      Camaro builders running R-compound tires and aggressive aerodynamics.
      ✓
      Drivers needing precise corner-weight capabilities and extreme damper tuning.
      Not Ideal For
      ×
      Daily drivers prioritizing a soft, comfortable commute (choose 2258-1S).
      ×
      Stock-tire street cars that won't benefit from high-rate track springs.

      Product FAQ

      Quick answers
      Who is the UMI 2258-1R race kit intended for?
      The 2258-1R kit is aimed at 2016–2024 Camaro owners focused on road race, time-trial, and high-level autocross performance, where rear suspension support and adjustability are critical.
      What makes the 2258-1R a “race” kit?
      The 1R uses Viking Crusader shocks with a race-oriented valving range and 550 lb/in rear springs, providing the support and control needed for high-grip tires and aggressive driving.
      Can I still drive on the street with the 2258-1R kit?
      You can, but the 550 lb/in springs and race-focused valving will ride significantly firmer than a street-biased setup. This kit is optimized for track performance.
      What advantages do Crusader shocks provide in the rear?
      Crusader double adjustable shocks allow independent tuning of compression and rebound, letting you control squat under power, turn-in rotation, and overall platform stability.
      Does the 2258-1R kit allow corner-weight adjustment?
      Yes. The coilover design lets you adjust spring preload and ride height, enabling precise stance, rake, and corner-balance settings for competition.
      Is any welding required to install the race kit?
      No. The UMI brackets and Viking coilovers are designed as bolt-on components that install using factory mounting points and the supplied hardware.
      What shock end style does the 1R kit use?
      The Viking A392GP shocks feature bearing mount ends for improved articulation and zero binding during extreme suspension travel.
      Should I pair this rear kit with other suspension parts?
      For best results, UMI recommends pairing the 2258-1R rear kit with front coilovers, caster/camber plates, sway bars, and performance rear links to build a balanced, race-winning chassis.

      KIT ITEMS

      This item is a kit containing the following items:
      2258 - 2016-2024 Camaro Coilover Mount Kit, Rear, Upper
      2258 - 2016-2024 Camaro Coilover Mount Kit, Rear, Upper

      SKU: 2258

      Price: $99.99

      THIS PRODUCT FEATURES

      Designed & Manufactured in the USA

      North American Raw Materials

      Precision Laser Cut Components

      Precision Welds

      About Viking Performance

      Viking Performance, Inc. specializes in high-performance double adjustable shock absorbers and related products. Founded in 2011 by experienced racing enthusiasts, the company identified a gap in the market for affordable double adjustable shocks, allowing customers to optimize their vehicle's ride quality by independently tuning compression and rebound settings. By focusing solely on these products, Viking keeps prices competitive with single adjustable shocks, offering better performance without unnecessary costs.

      Viking conducts all aspects of design, research, and manufacturing in-house, ensuring quick responses to market changes. The company has received prestigious awards like SEMA's Best Engineered Award and has expanded its product line to include various shock types, such as patented race-only Crusader shocks and lightweight aluminum struts. With a commitment to value and quality, Viking aims to provide exceptional products for racing and performance enthusiasts at accessible prices.

      FinishAnodized, Black Powder Coat
      AdjustableYes
      Fitment
      MaterialAluminum, Mild Steel
      Platform
      UOMPair
      Manufacturer
      ModificationsNone
      HardwareIncluded
      Direct Bolt-OnYes
      Why Choose

      UMI Performance

      21 Years In The Industry

      North American Raw Materials

      Proudly partnering with leading USA steel suppliers, we source the finest North American mined and milled steel

      Precision Bent DOM Tubing

      Machine-guided DOM tubing bends maintain correct geometry while maintaining material strength.

      Laser Cut Plating

      We take North-American sourced plating and precision-cut each component with the latest laser-cutting technology.

      Durable Powder Coating

      Each finished part is properly prepped and coated with high quality Tiger Dry Lac powder coat, providing a tough long-lasting finish.

      Consistent Welds

      Our highly-skilled welders and robotic-welders provide consistent welds and ultimate part penetration.

      100% USA Made

      We take pride in providing 100% USA-Manufactured suspension components.

        Shipping Guidelines

        Flat Rate Shipping ($12.95) is only offered on Retail orders over $149 shipped via Ground in the Continental United States.

        All International customers are responsible for any applicable duties and/or taxes incurred on your shipment upon delivery.

        Return Information

        All returns are subject to the authorization of UMI Performance, Inc. Please email [email protected] for a Returned Merchandise Authorization (RMA) number. Our Sales team will either authorize or deny the request for return at its discretion. Any product returned without an issued RMA number will not be credited. All returns must be made within 30 days of delivery, be in new condition, be in original sealed packaging and include the RMA number on the outside of the packaging. No exceptions. All products and their packaging must be in new and unopened condition. Products that have been altered, installed, or modified are not returnable. All shipping costs for returns are the responsibility of the customer. All returns are subject to a 20% restocking fee as well as the original shipping charges that UMI Performance may have incurred while shipping your order.

        Due to the majority of Viking products being drop shipped, we can not offer returns on any Viking products. If you purchase a Viking product be sure it fits your application. If you need technical assistance prior to placing order please contact [email protected]

        This '2258-1R - 2016-2024 Camaro Coilover Kit, Rear, Viking Shocks, Race-Handling' fits the following platforms:

        Fitment Note: A MagneRide delete module is required when using Viking, Penske, or other aftermarket shocks when installed on vehicles equipped with factory MagneRide struts. This module bypasses the MagneRide system and eliminates error codes on the dash.

        2016-2024 Chevrolet Camaro

        • 2016-2014 Chevrolet Camaro

        This 2258-1R - 2016-2024 Camaro Coilover Kit, Rear, Viking Shocks, Race-Handling fits the following vehicles:

        Chevrolet

        Camaro

          RELATED PRODUCTS

          Add to wishlist

          2104 – Billet Tie Rod Adjusting Sleeves – 11/16″ Thread

          In stock

          $59.99
          SKU: 2104
          Add to cart
          Compare
          Quick view
          Add to wishlist

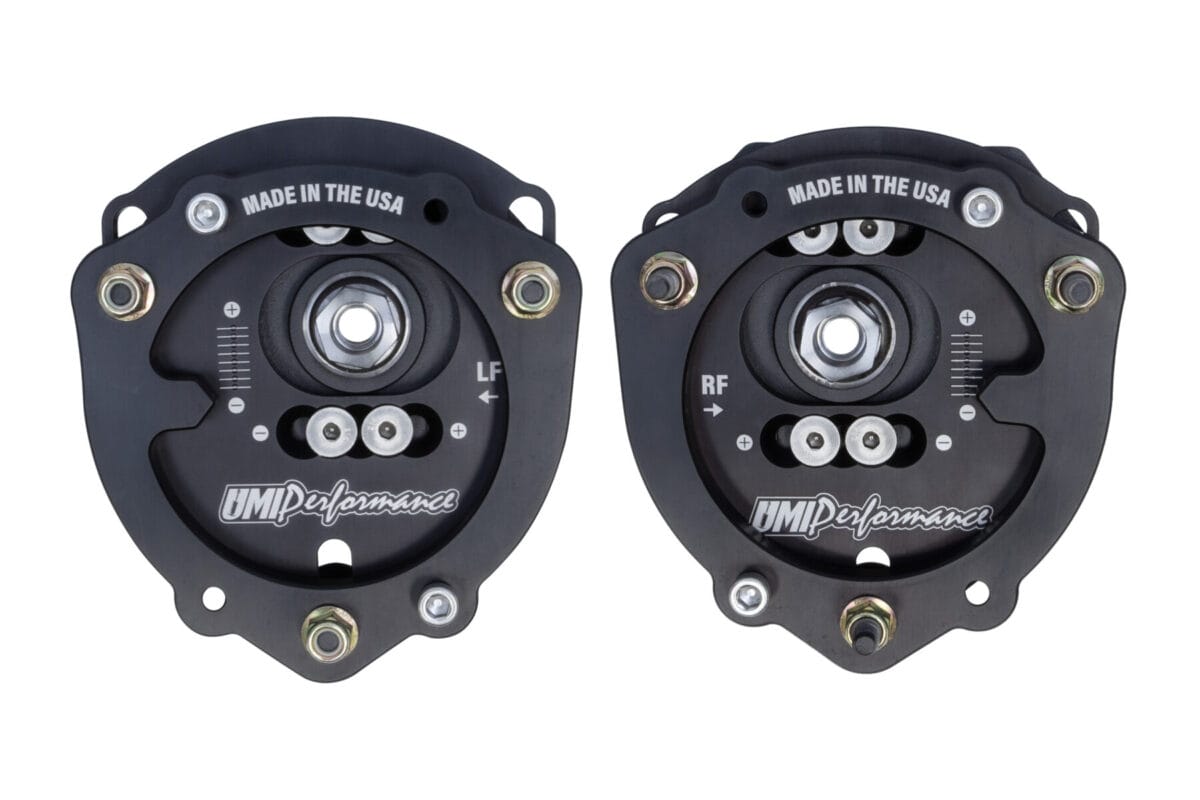

          2255 – 2016-2024 Camaro Caster/Camber Plates, Adj, Strut Mount

          In stock

          $729.99
          SKU: 2255
          Select options This product has multiple variants. The options may be chosen on the product page
          Compare
          Quick view
          Add to wishlist

          2541 – 2016-2024 Camaro Rear Lower Trailing Links, Adjustable, Roto-Joints

          In stock

          $239.99
          SKU: 2541
          Select options This product has multiple variants. The options may be chosen on the product page
          Compare
          Quick view
          Add to wishlist

          2545 – 2016-2024 Camaro Rear Toe Rods, Adjustable, Rod Ends

          In stock

          $349.99
          SKU: 2545
          Select options This product has multiple variants. The options may be chosen on the product page
          Compare
          Quick view
          Add to wishlist

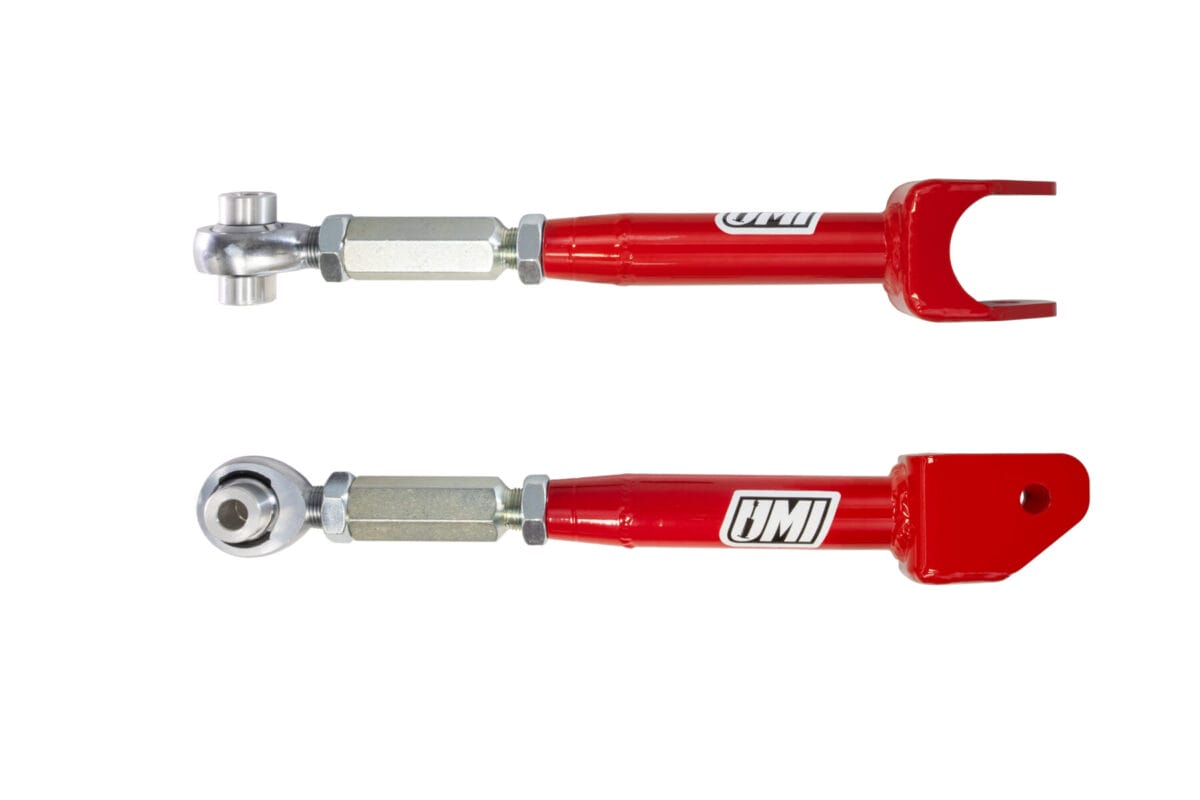

          2542 – 2016-2024 Camaro Rear Lower Trailing Links, Adjustable, Rod Ends
